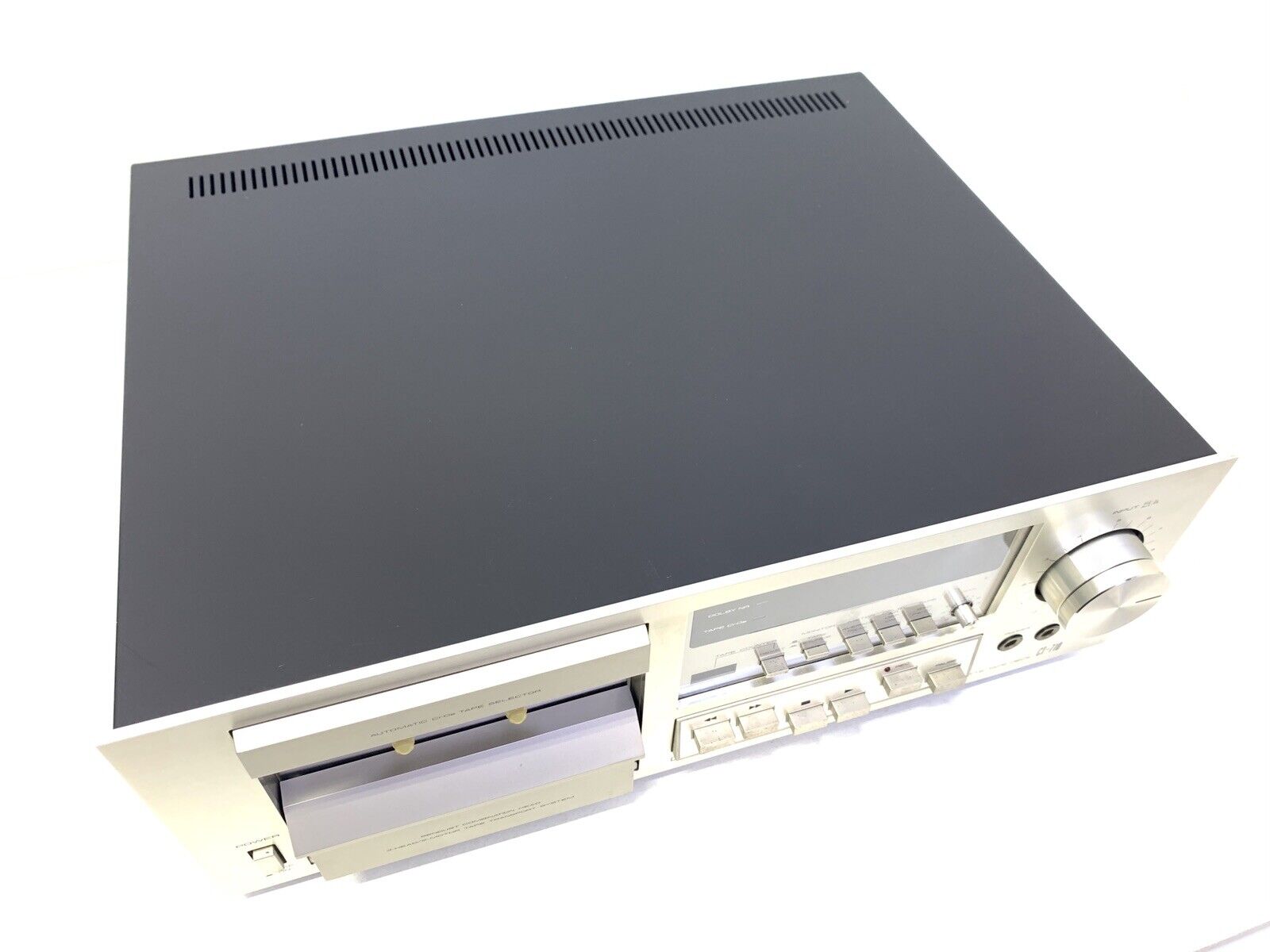

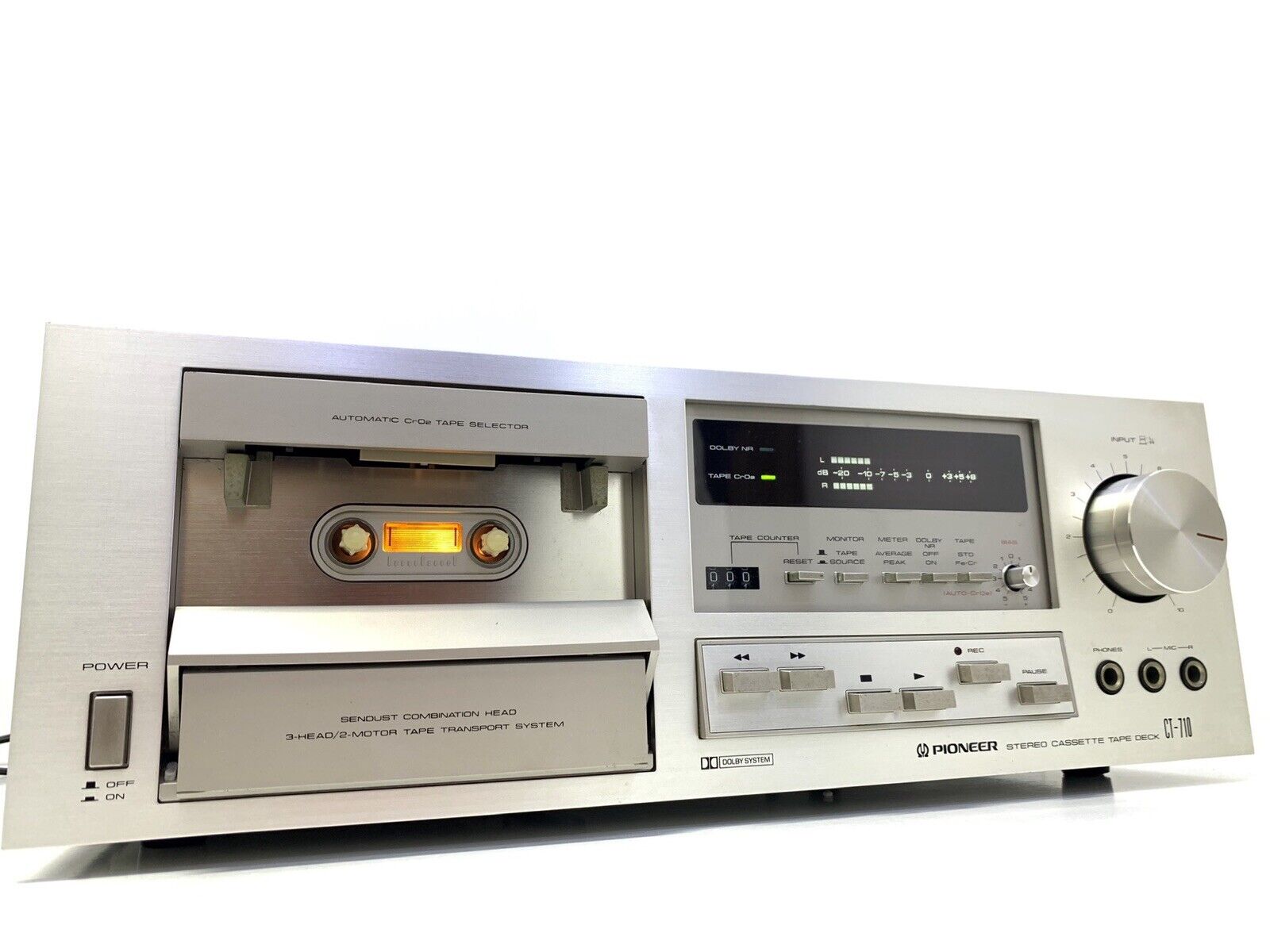

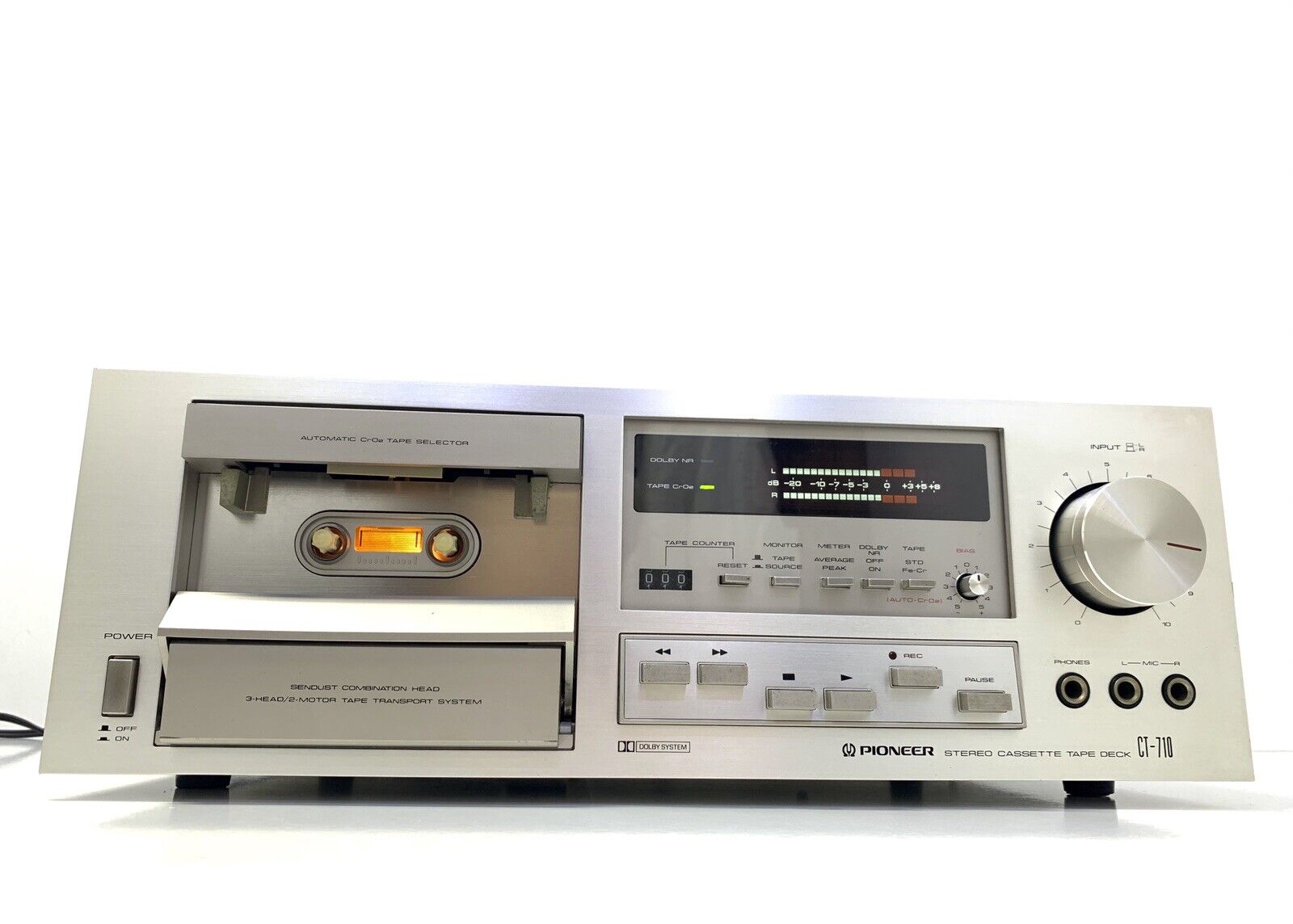

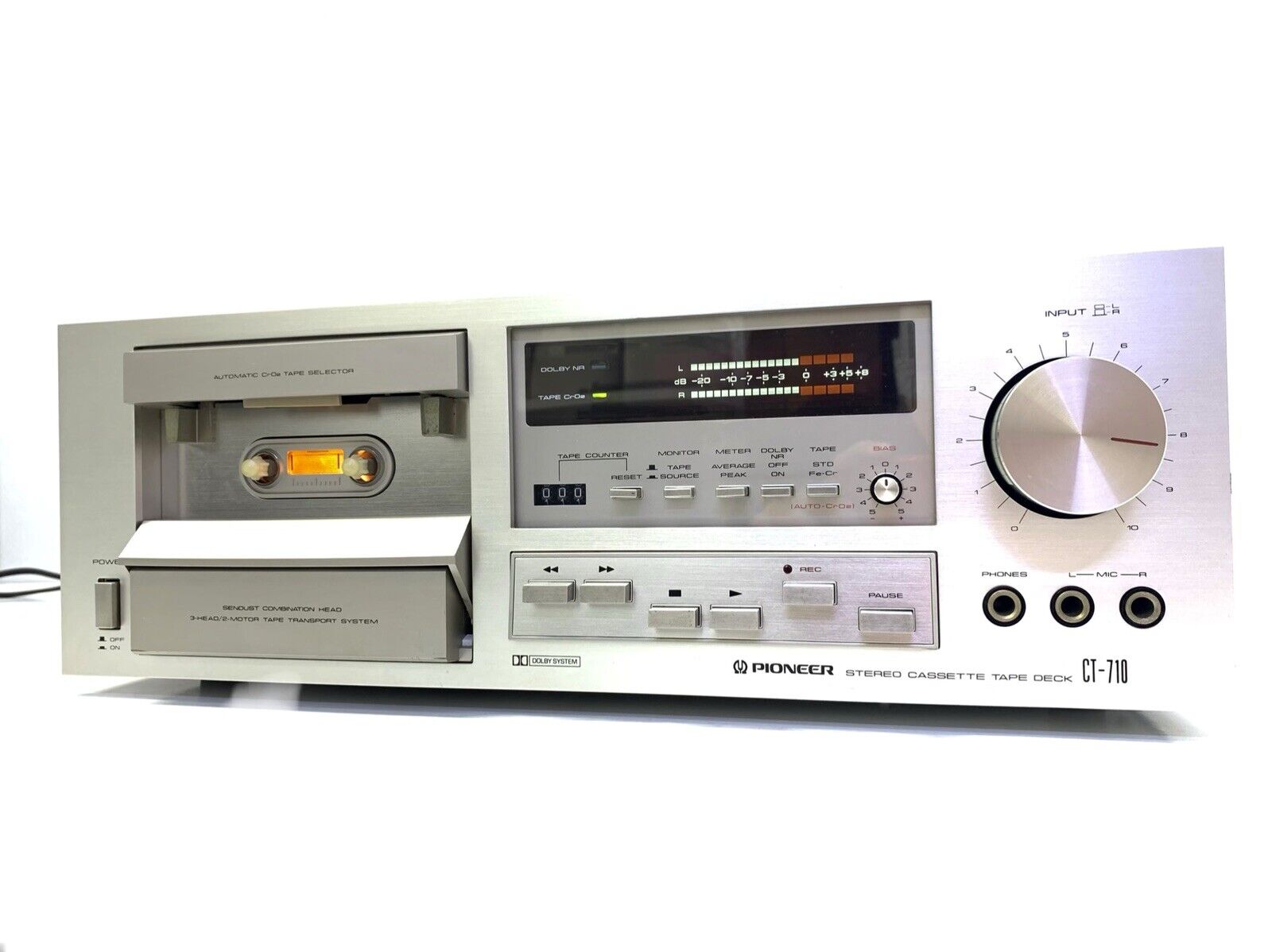

PIONEER CT-710 (Japanese Version) / CT-F800 2 Motor 3 Head Stereo Cassette Deck Vintage 1979 Work on 220 volts Like New

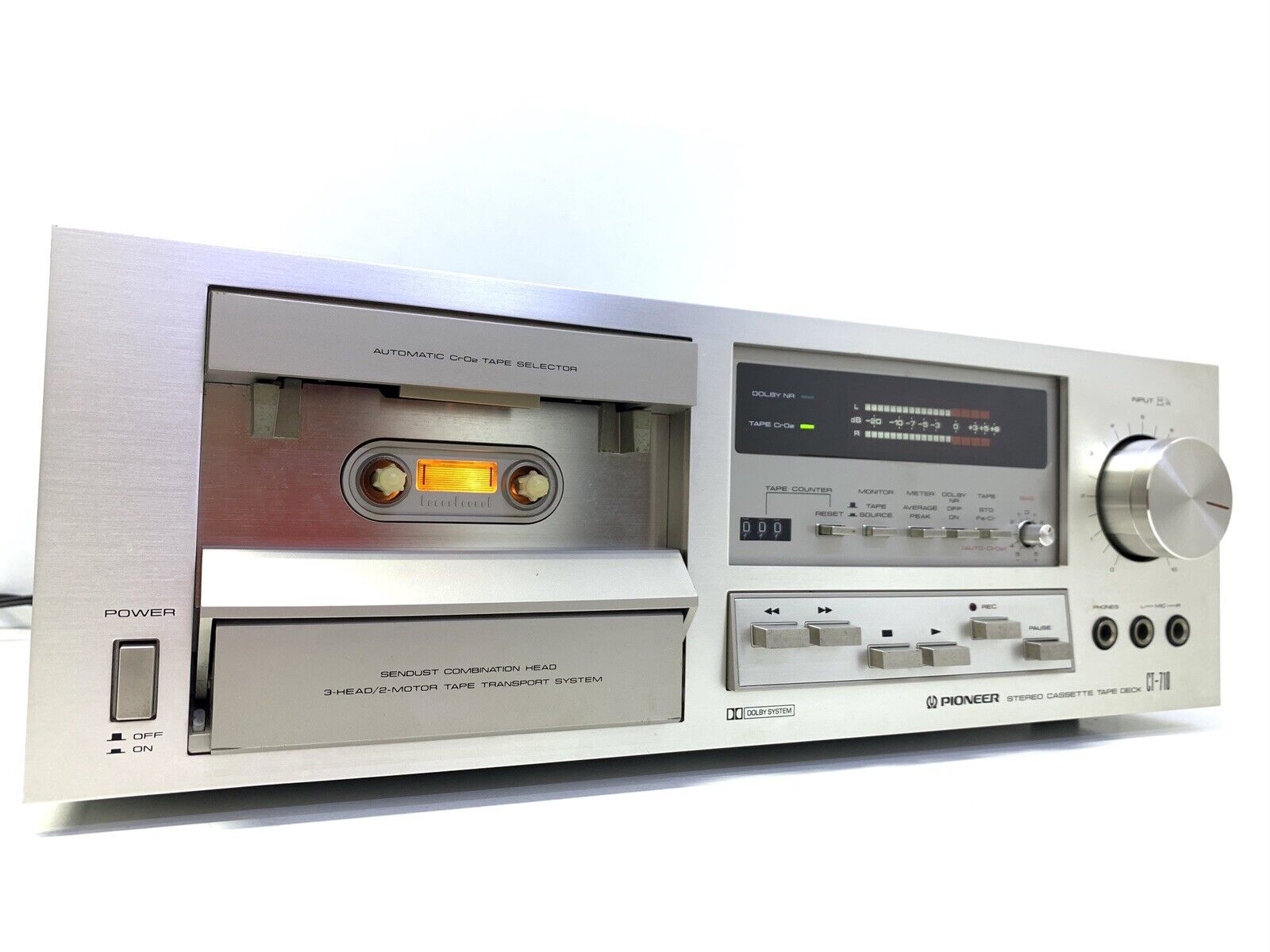

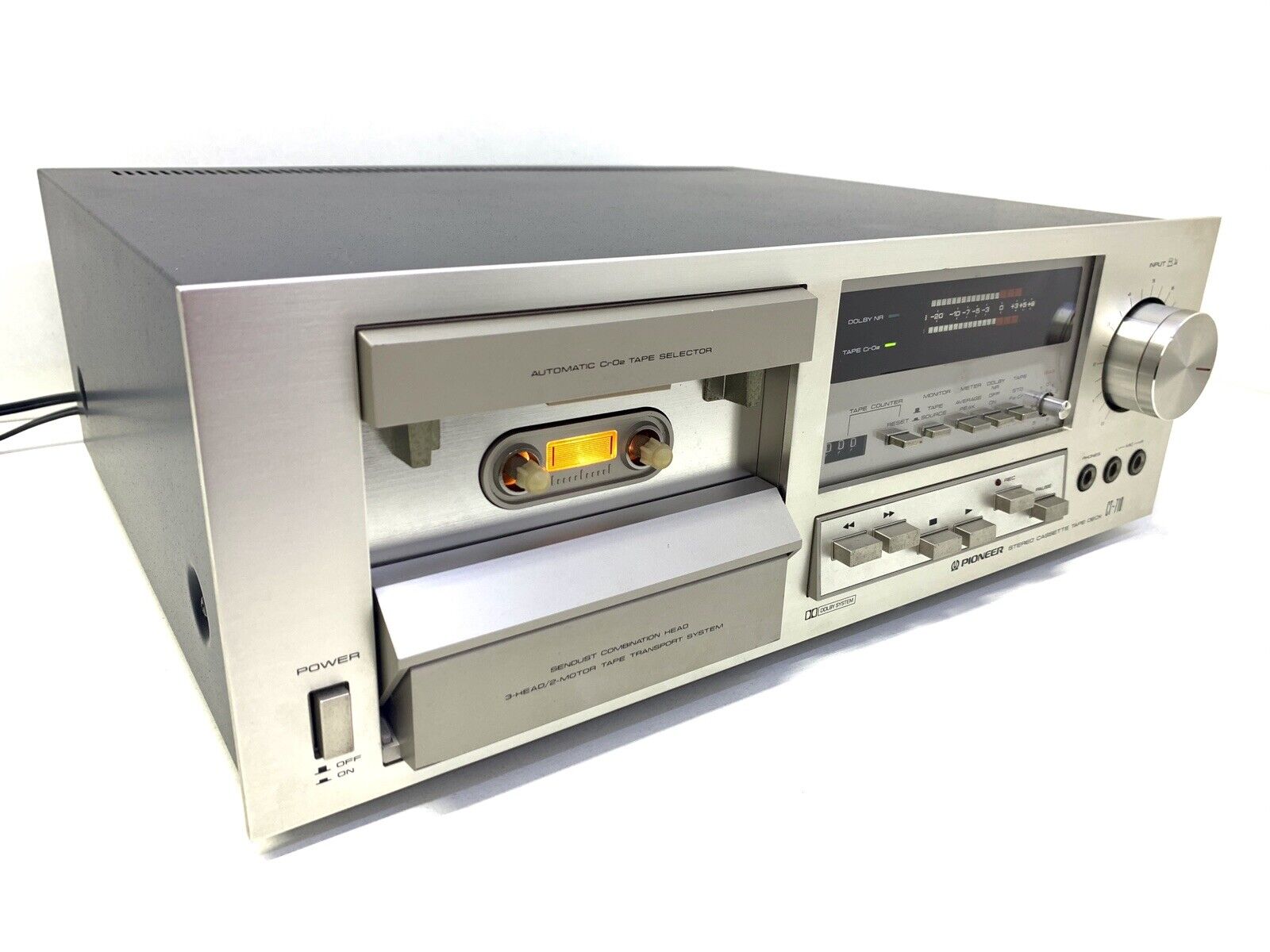

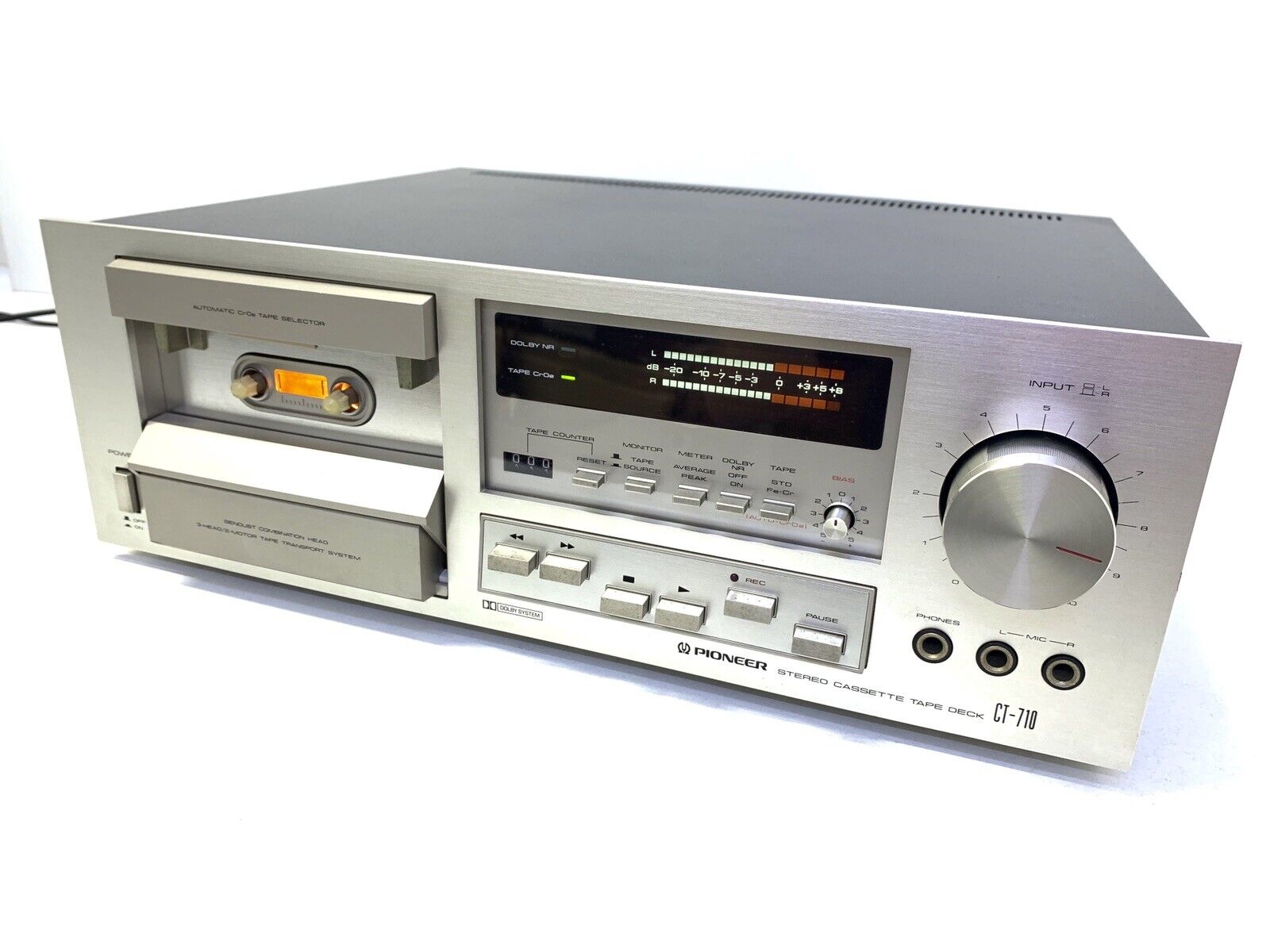

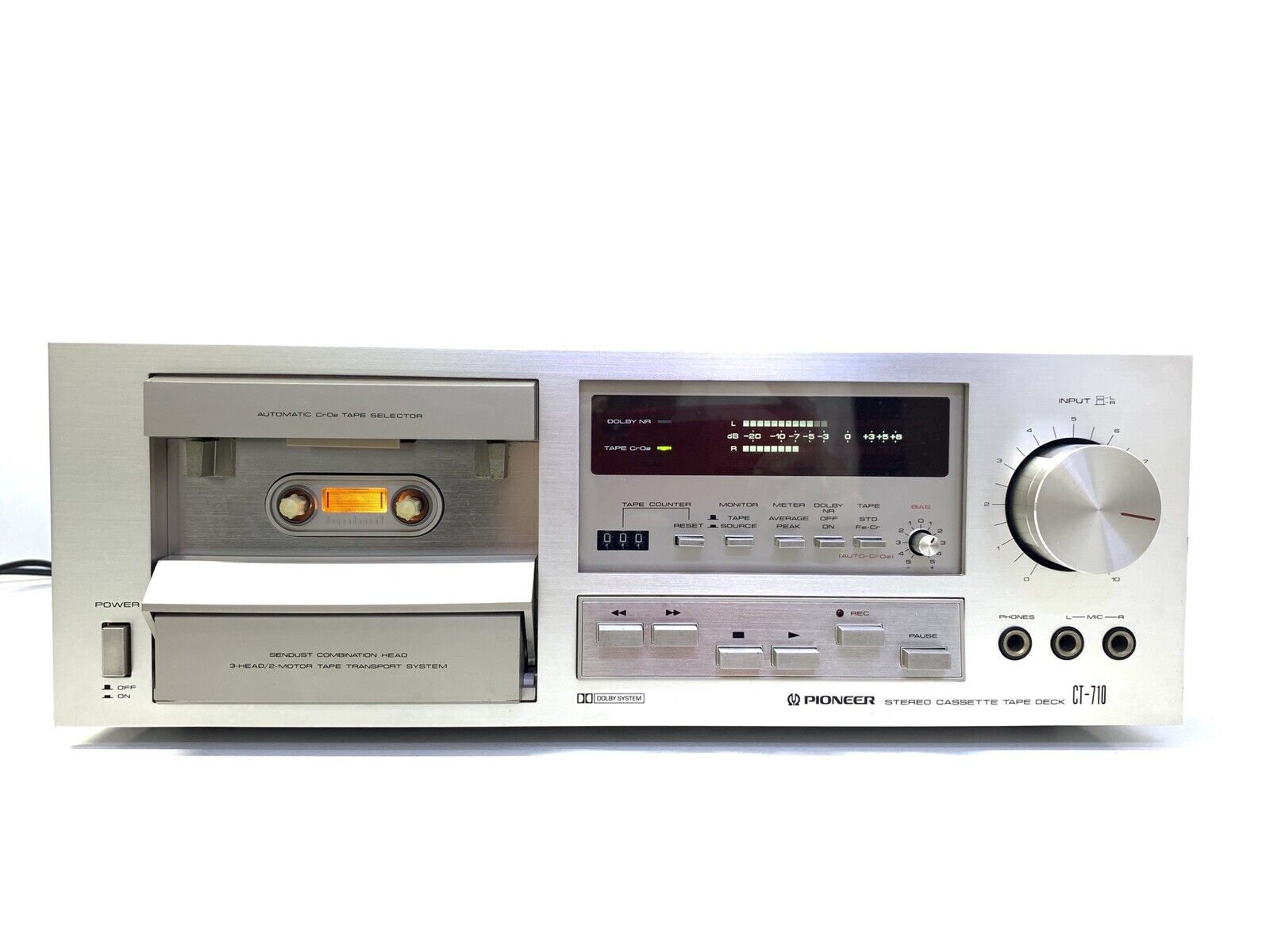

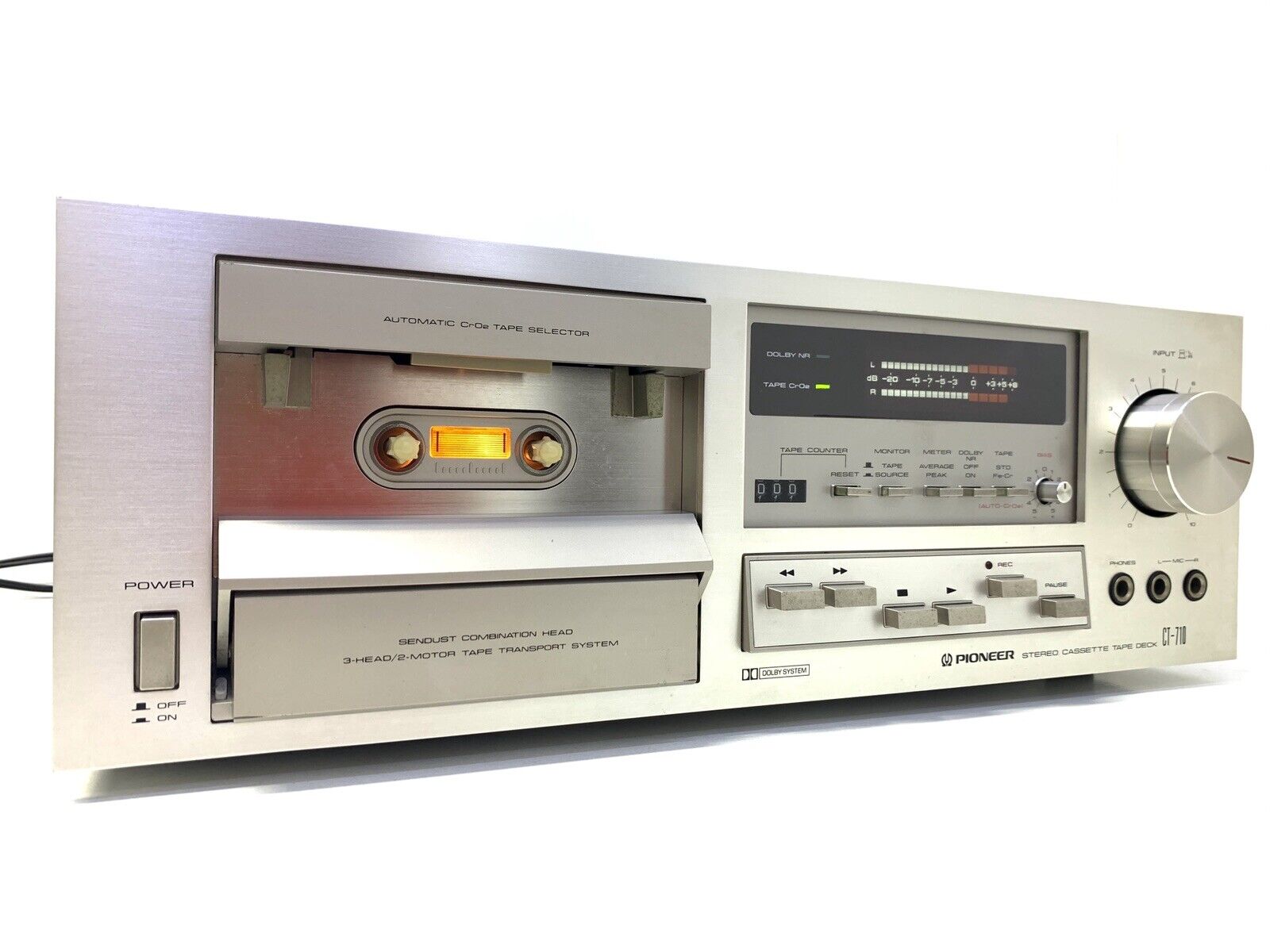

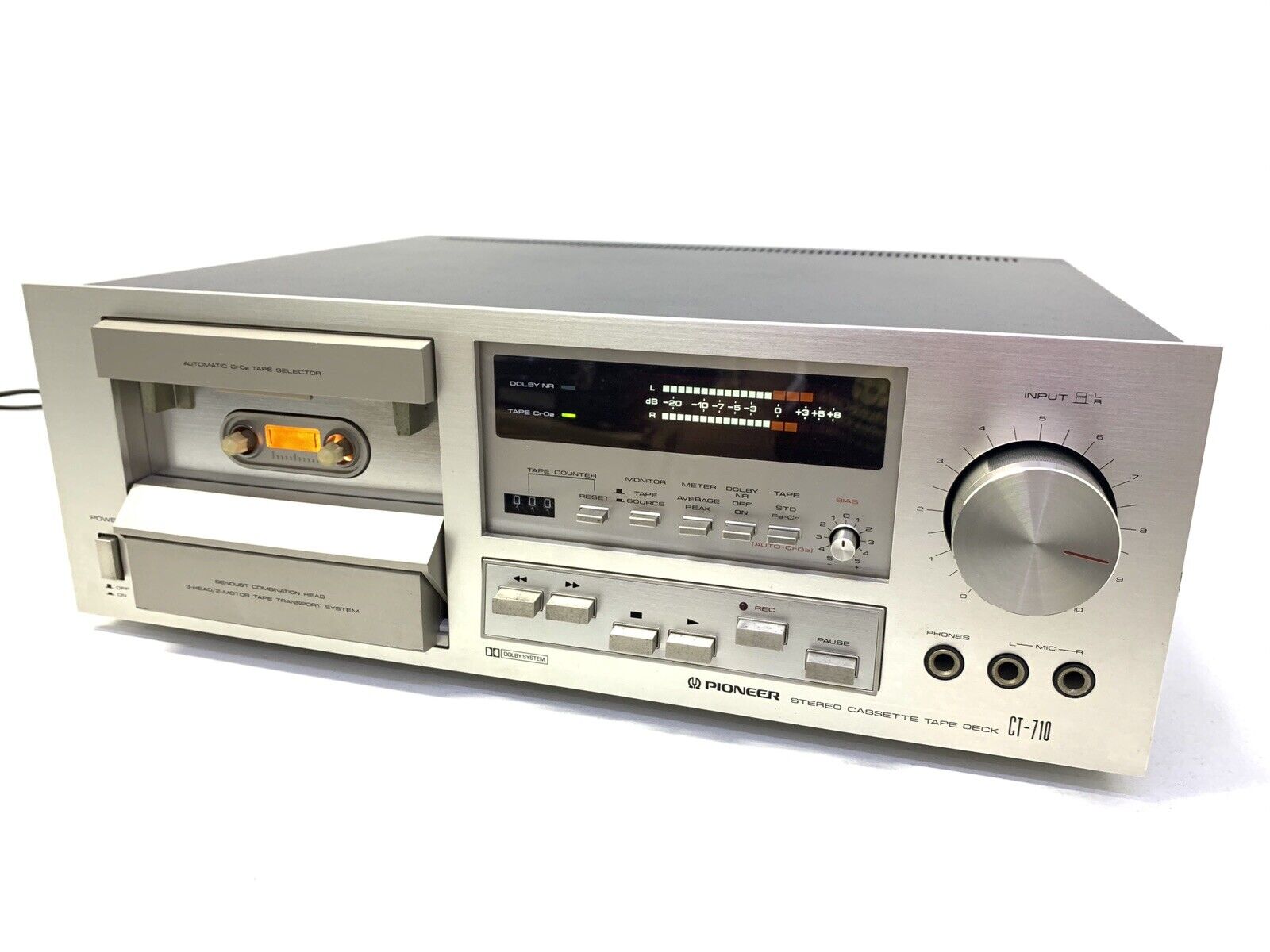

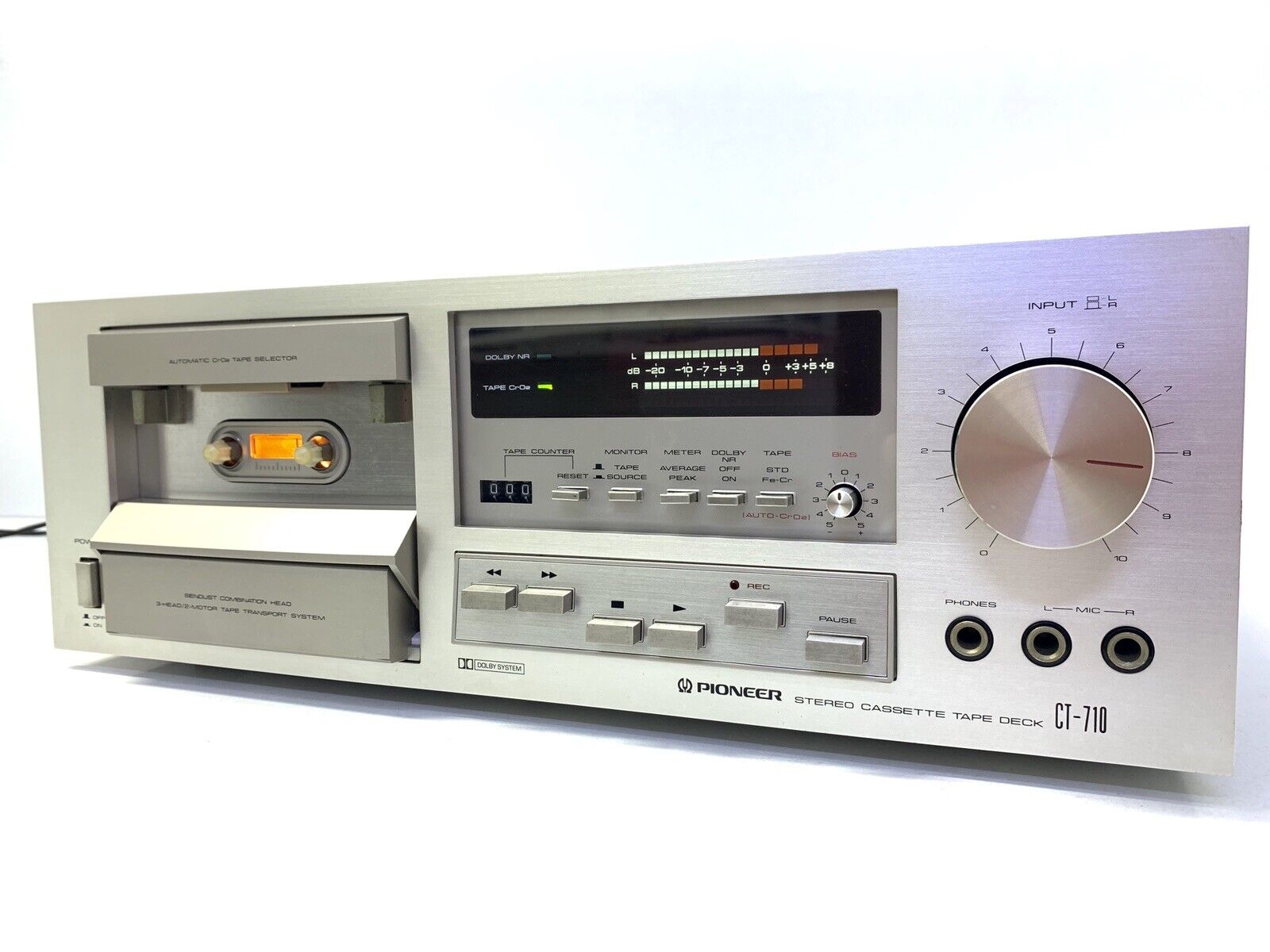

Pioneer CT-710 (Japanese Version) / CT-F800

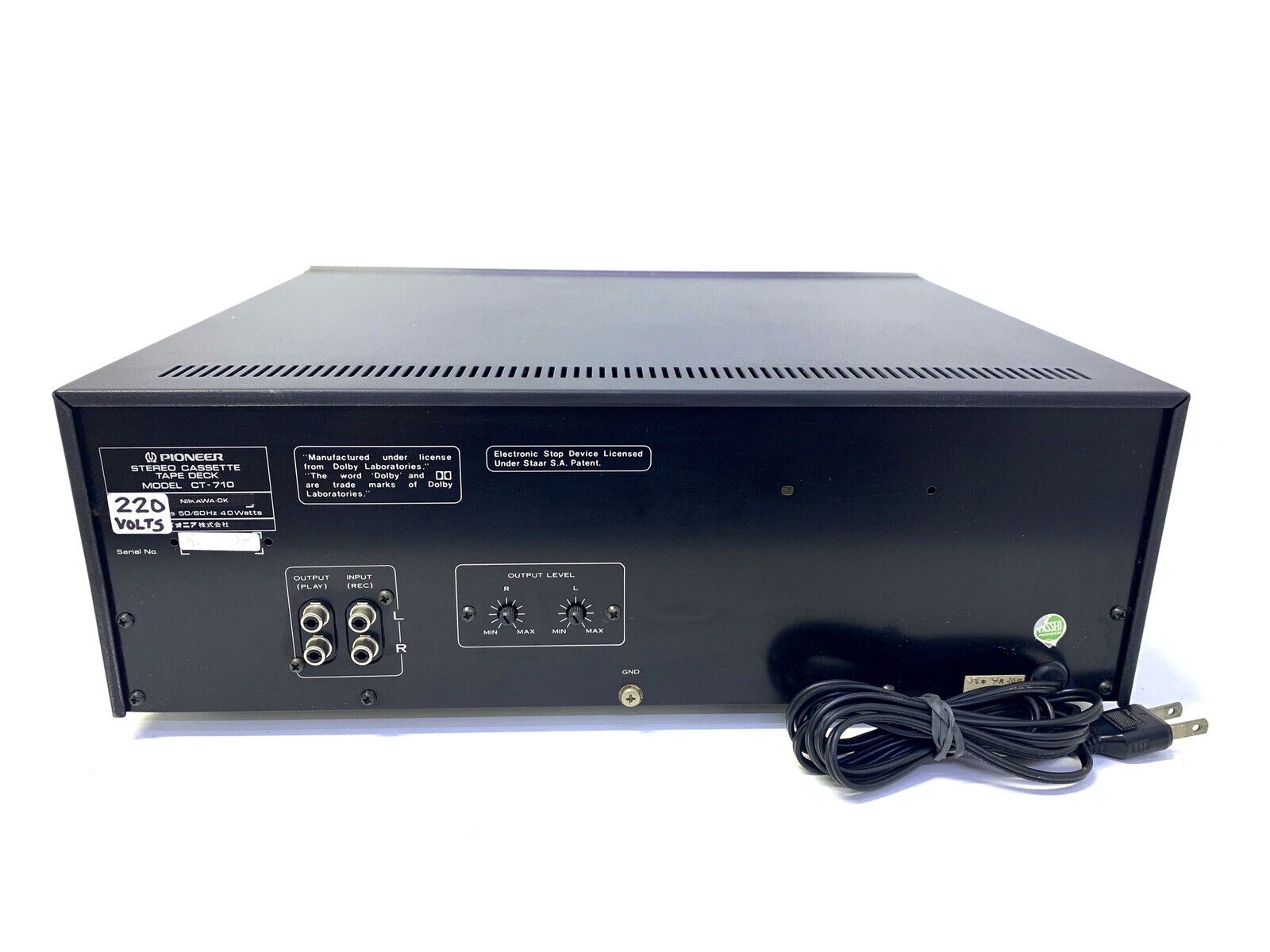

Working on 220 volts
Stereo Cassette Deck (1979-81)
Description
The Pioneer CT-F800 is a 2-motor, 3-head capable stereo cassette deck with Dolby system.
Features include an electronically controlled DC servo motor for capstan drive, DC high torque motor for fast forward and rewind, Sendust Alloy Solid recording/playback head and a small window erase head.
Specifications
Type: 3-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.75 cm/s
Heads: 1 x combination record/playback, 1 x erase
Motor: 1 x reel, 1 x capstan
Tape Type: type I, FeCr, CrO2
Noise Reduction: B
Frequency Response: 20Hz to 19kHz (CrO2 tape)
Signal to Noise Ratio: 69dB (dolby B)
Wow and Flutter: 0.04%
Total Harmonic Distortion: 1.2%
Input: 64mV (line), 0.3mV (mic)
Output: 0.45V (line)
Semiconductors: 52 x transistors, 52 x diodes, 10 x IC
Dimensions: 420 x 150 x 361mm
Weight: 9.5kg
Year: 1979
