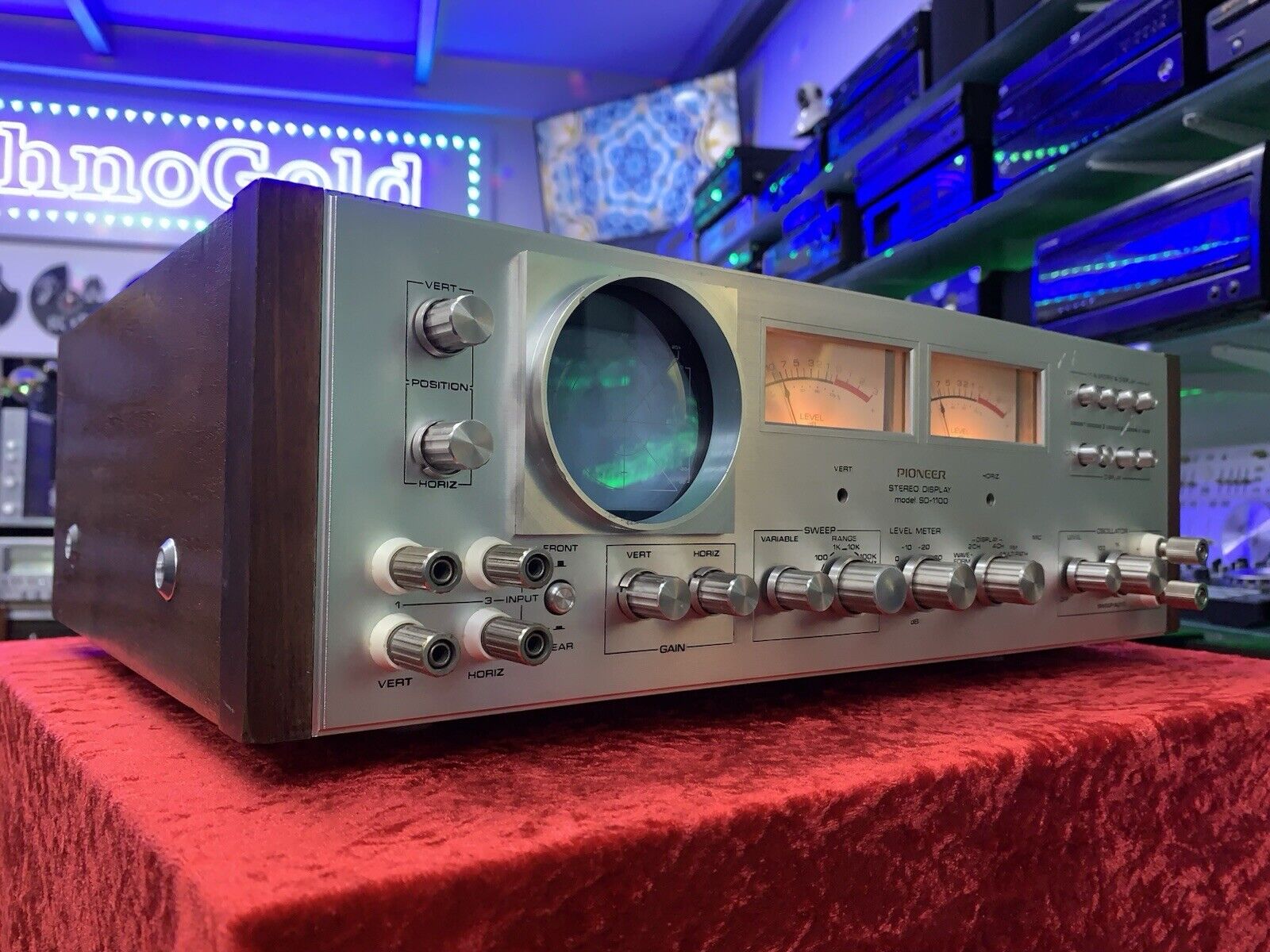

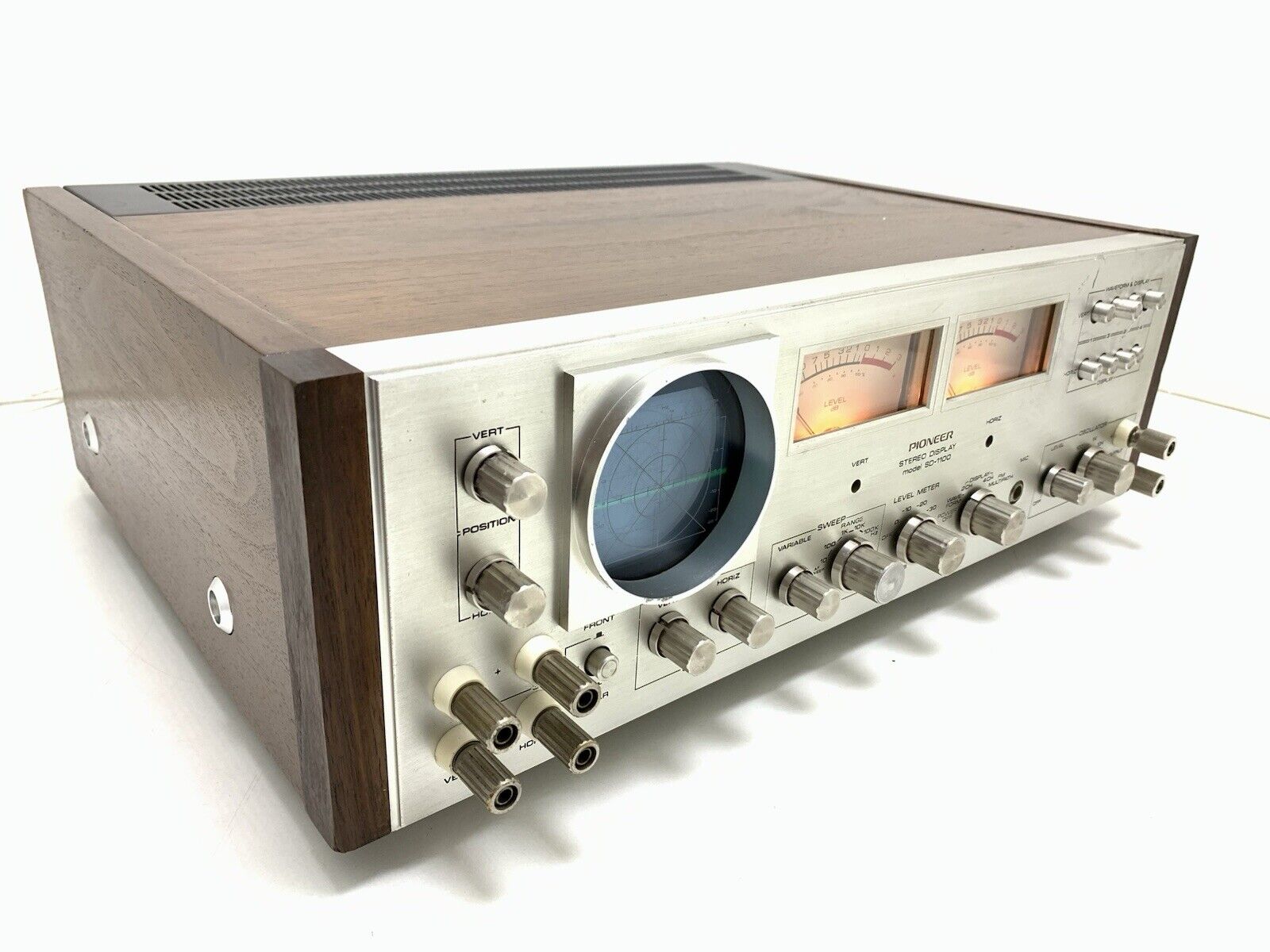

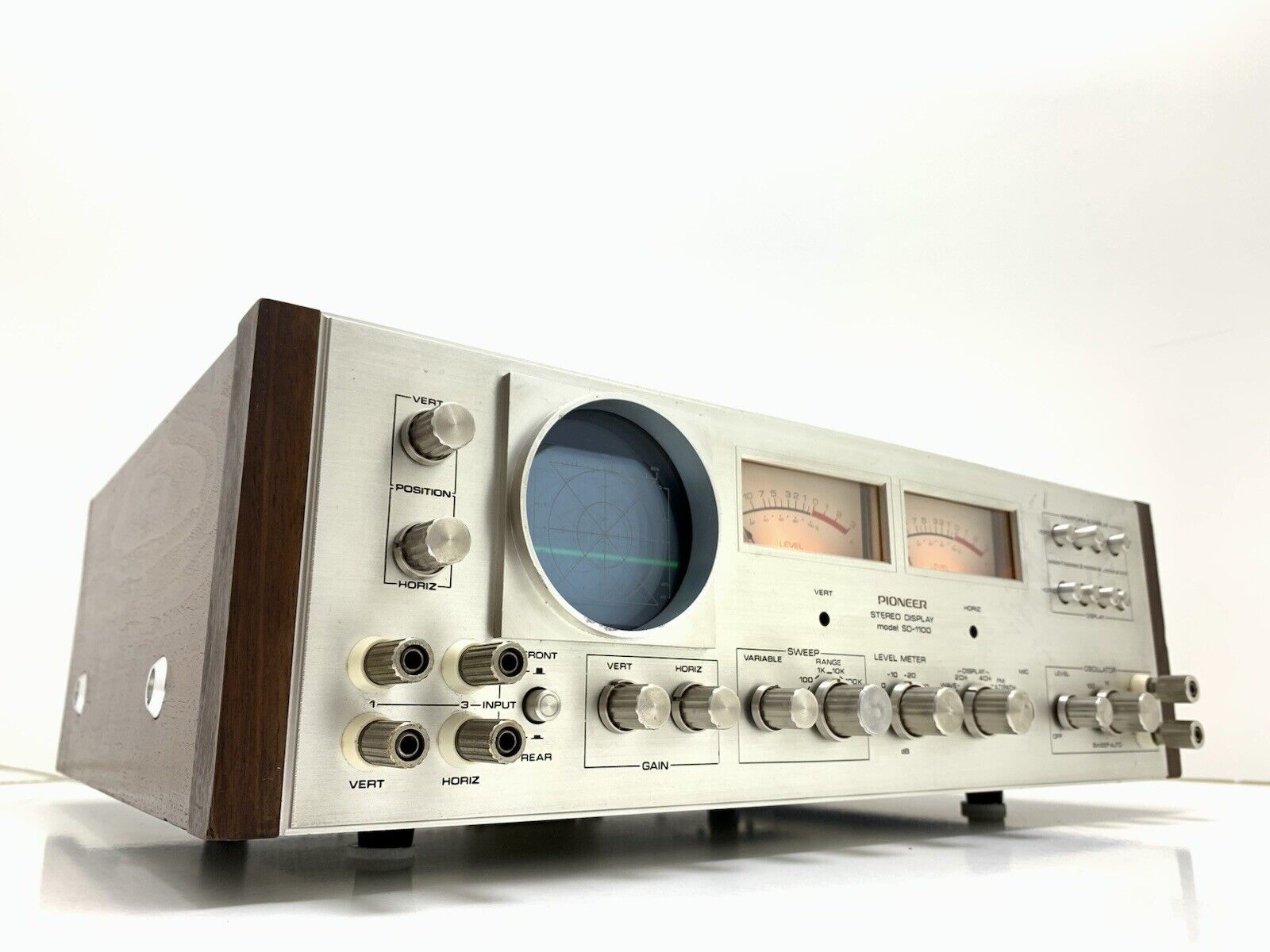

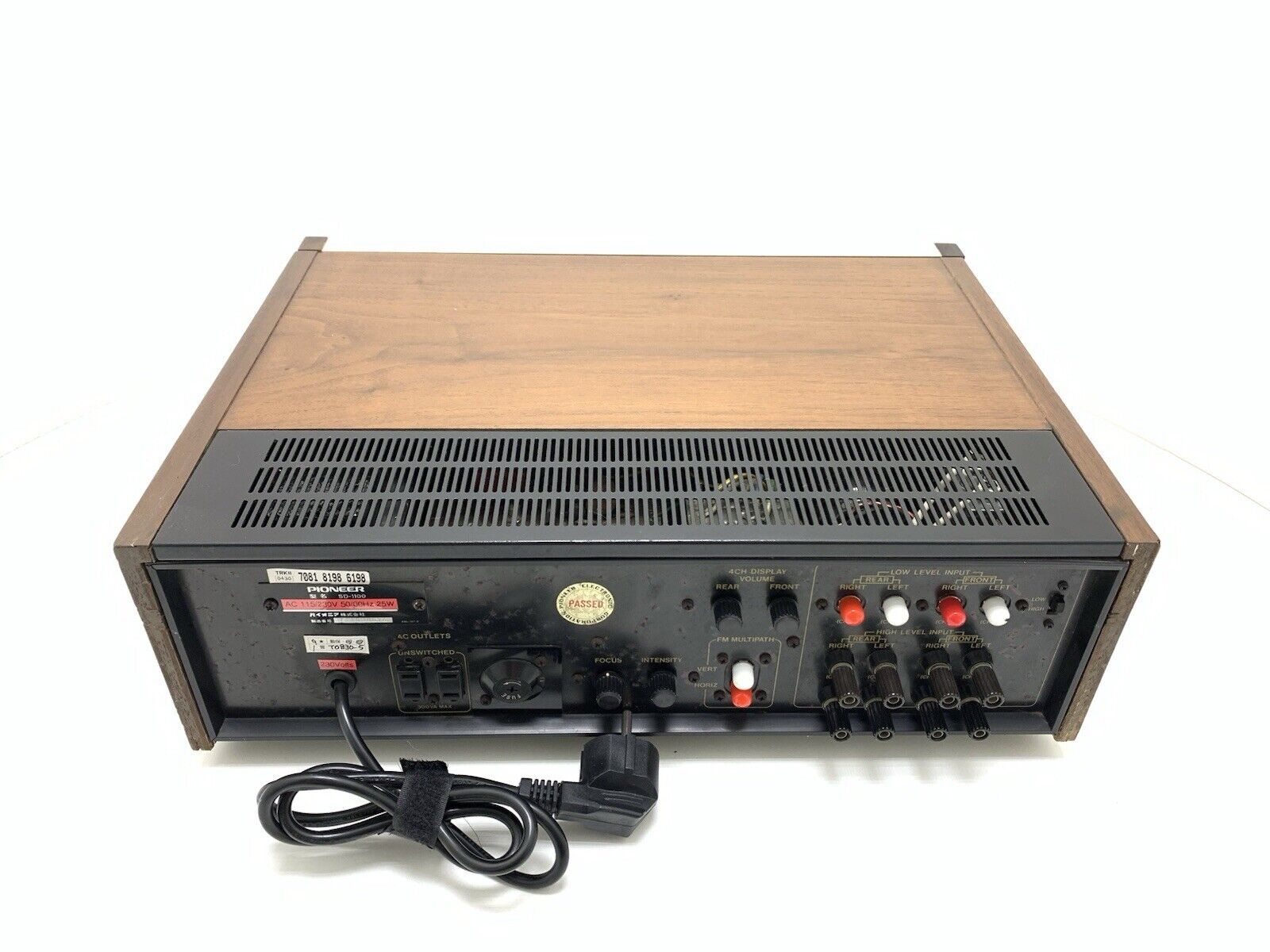

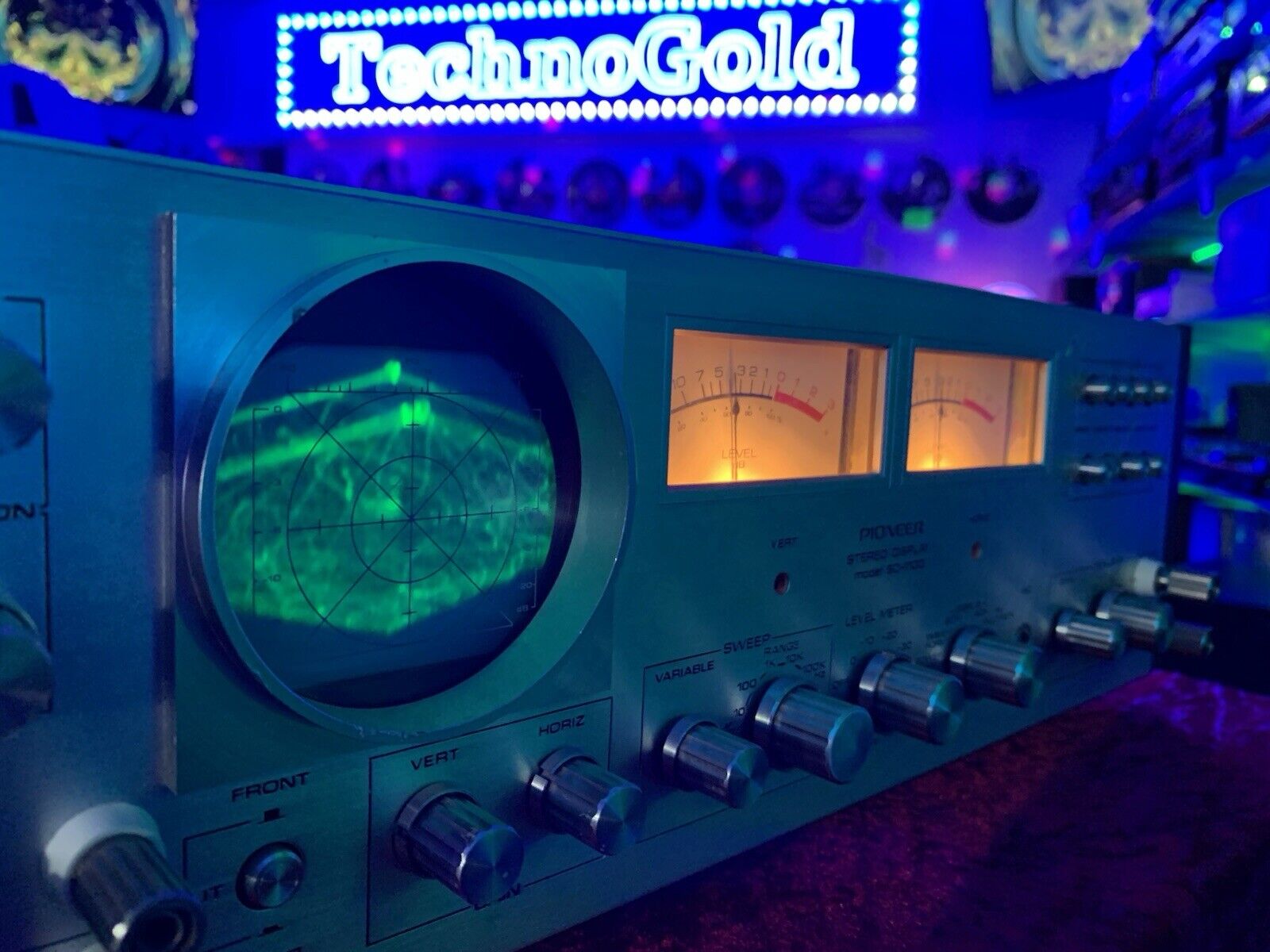

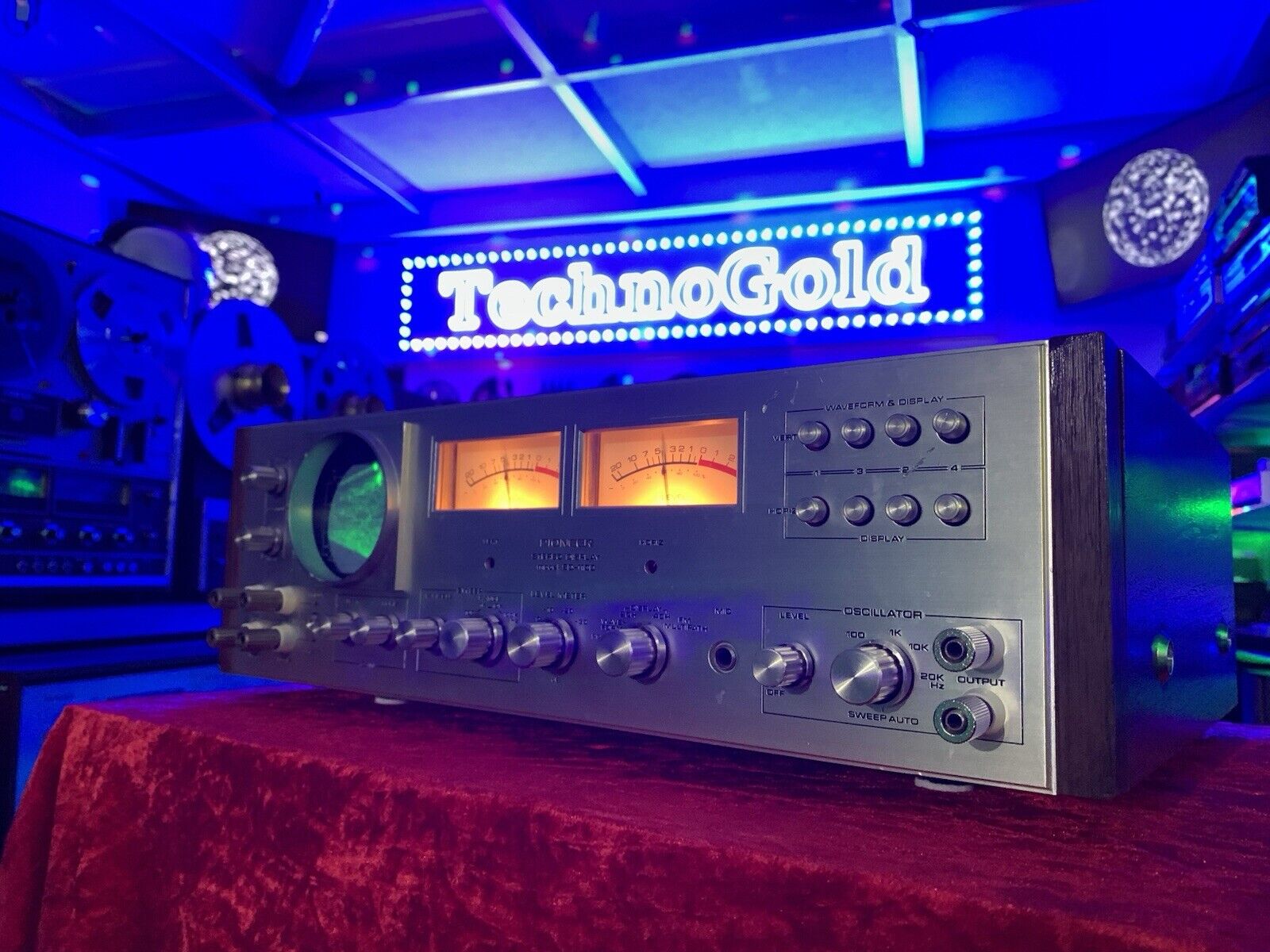

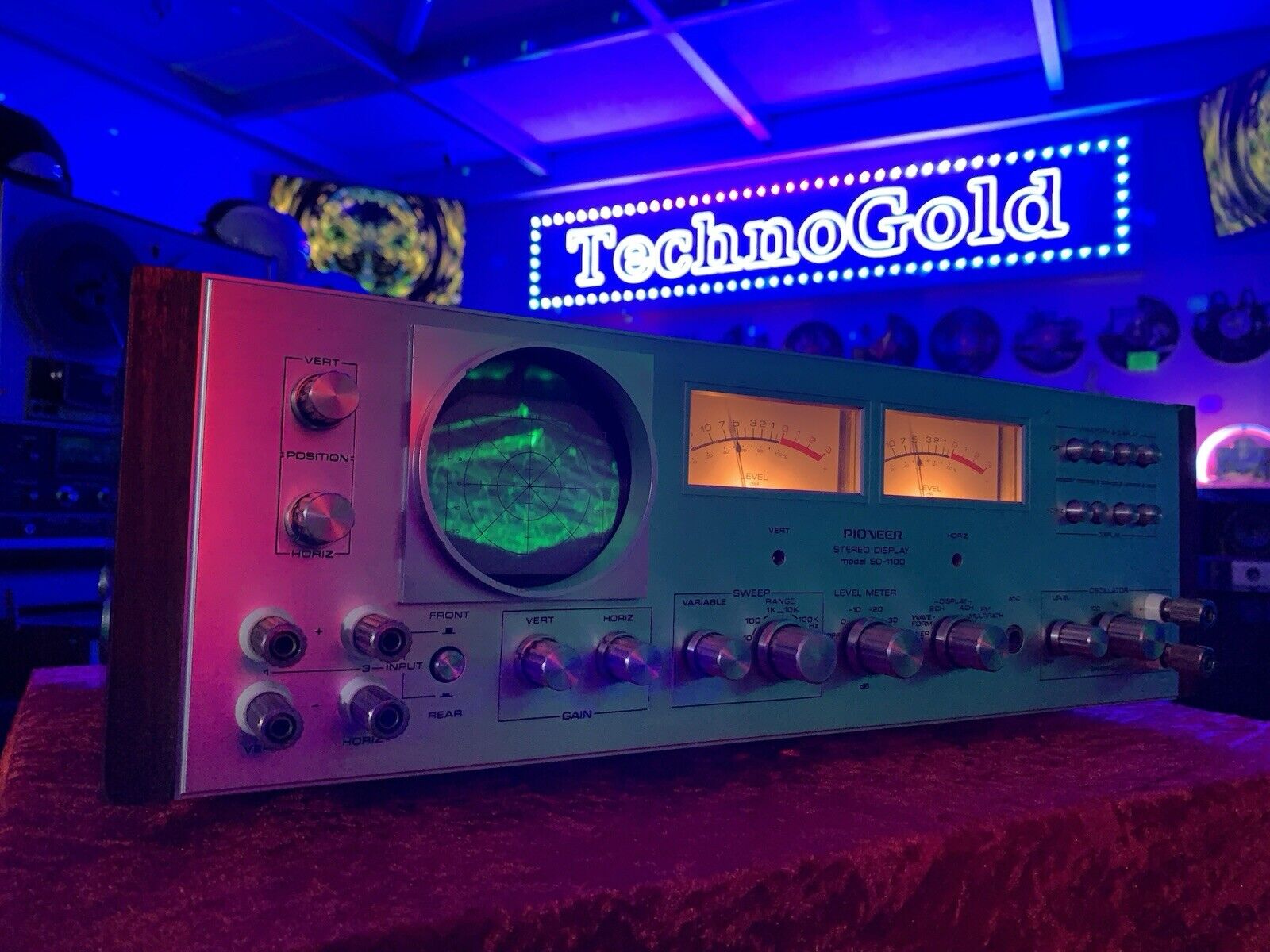

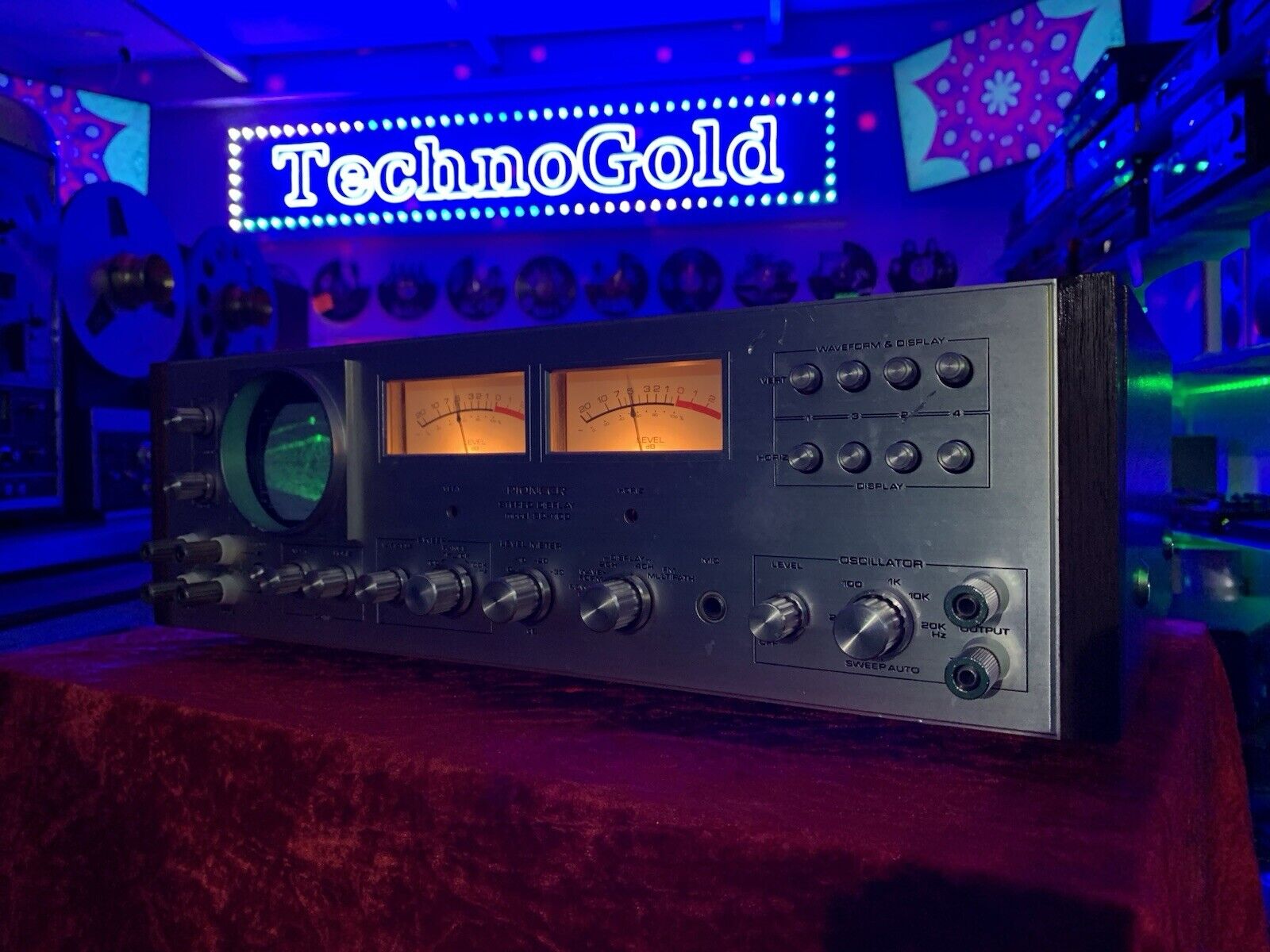

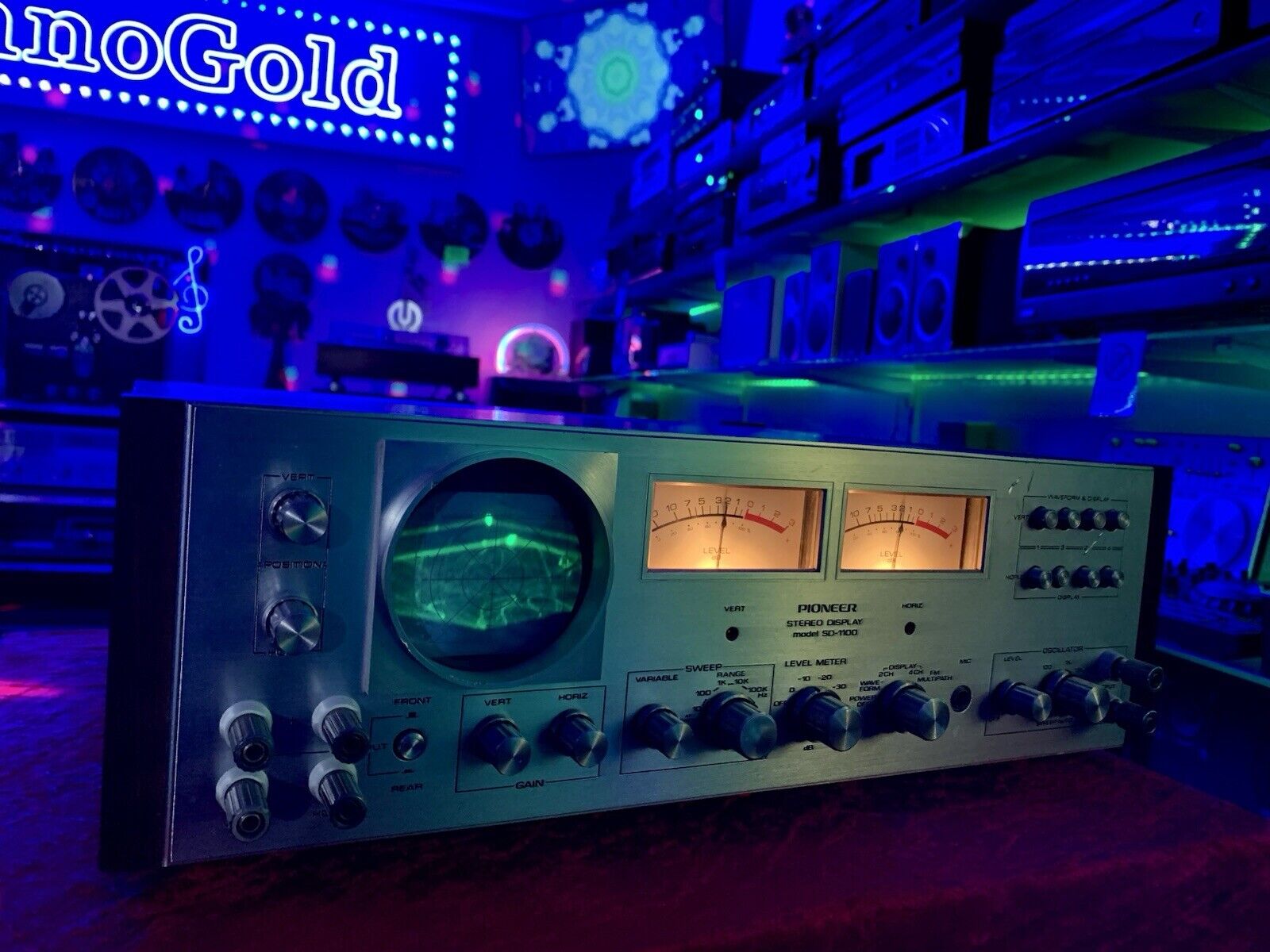

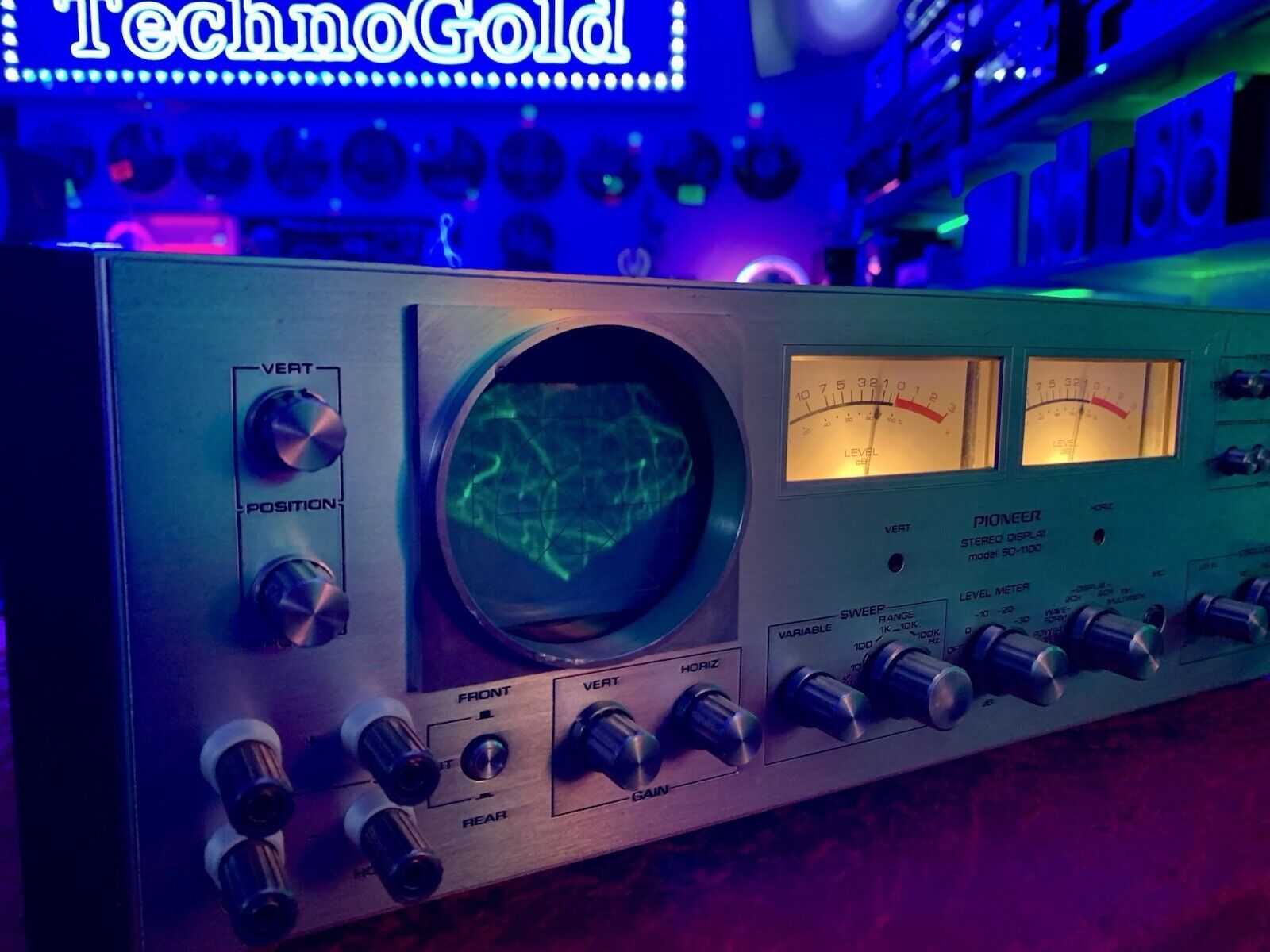

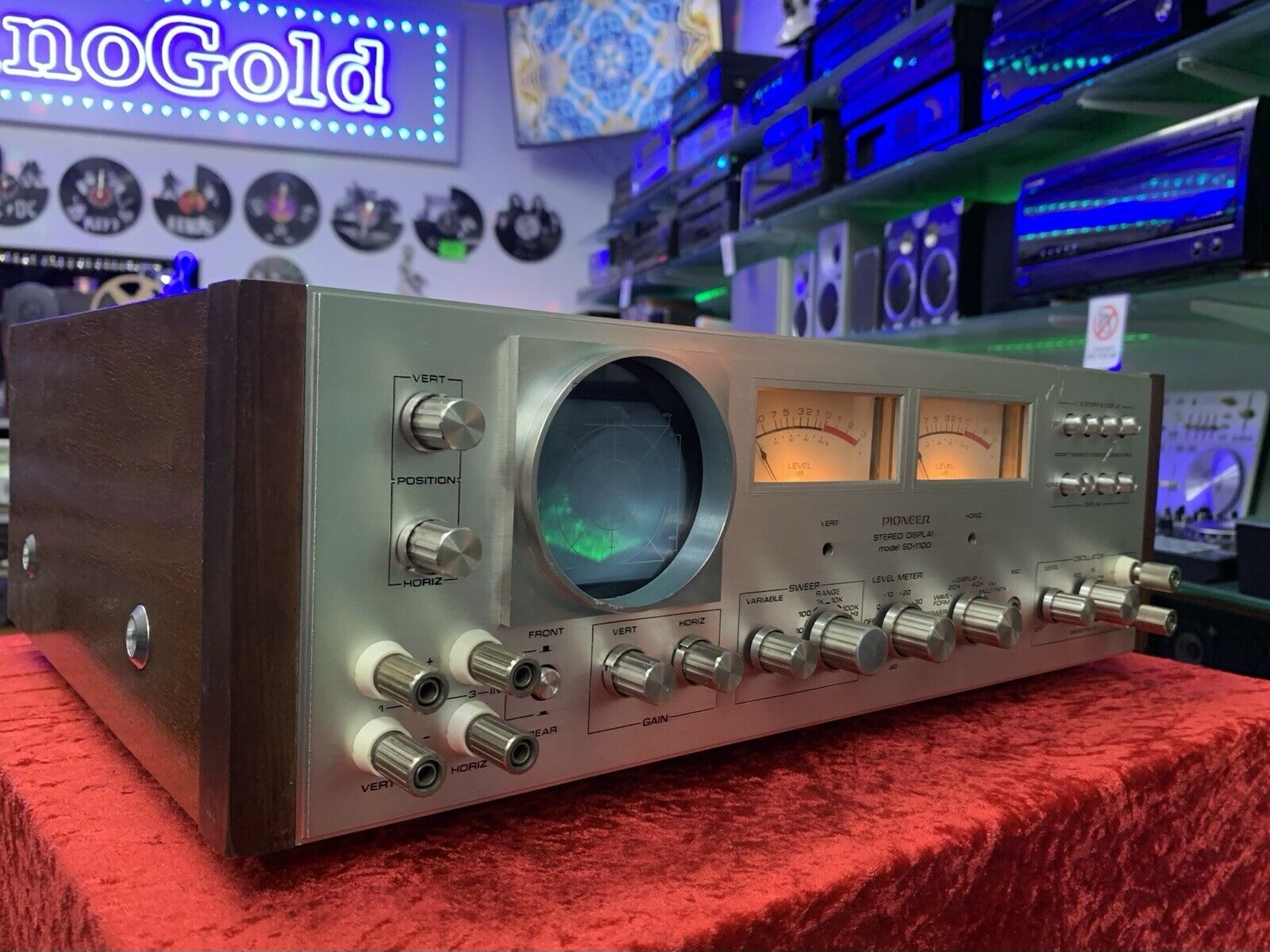

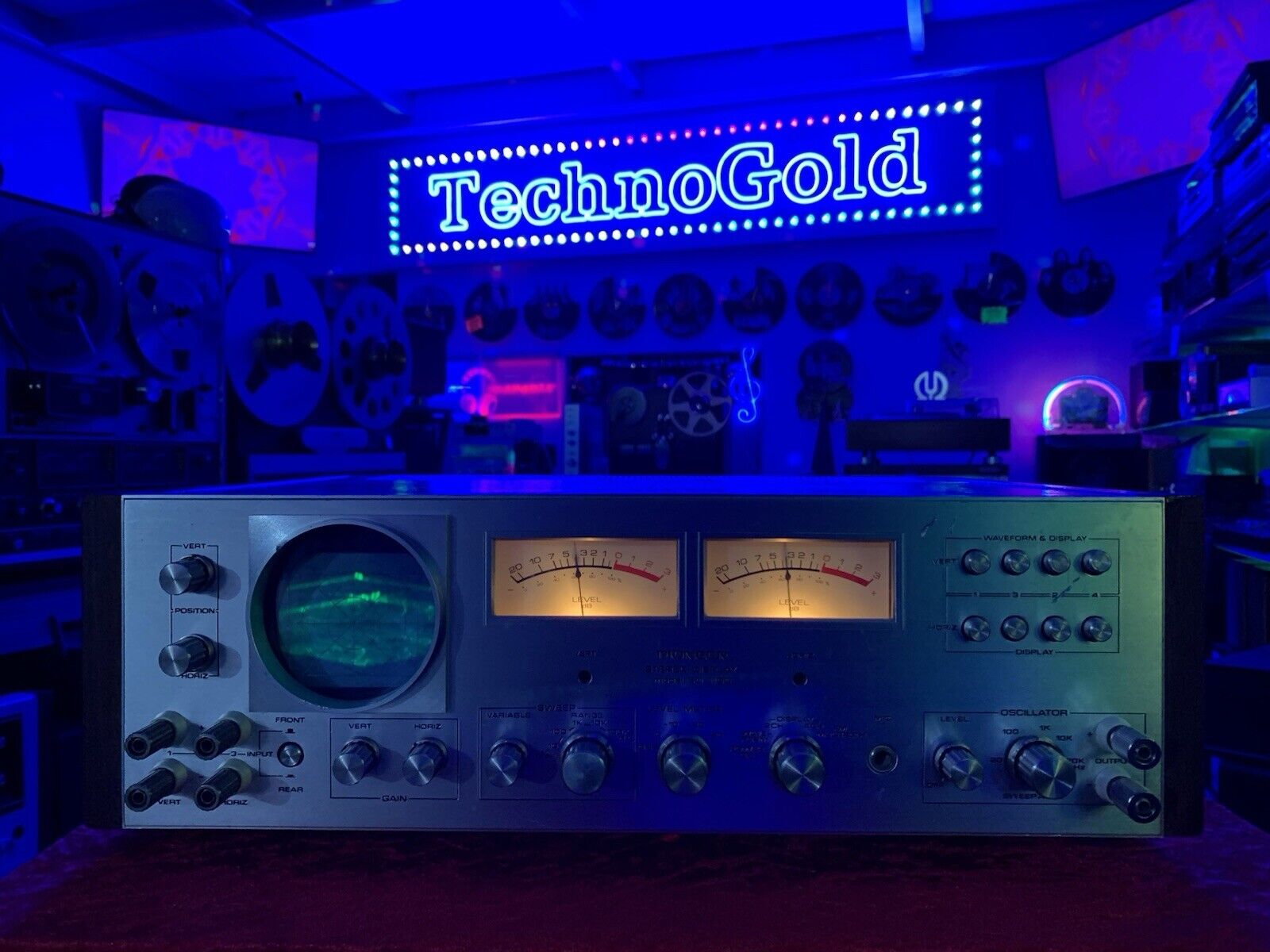

PIONEER SD-1100 Stereo Display Audio Scope VERY RARE Vintage 1972 WORK Perfect Refurbished Good Look
Working Perfect On AC 115/125 volts and 230/240 Volts

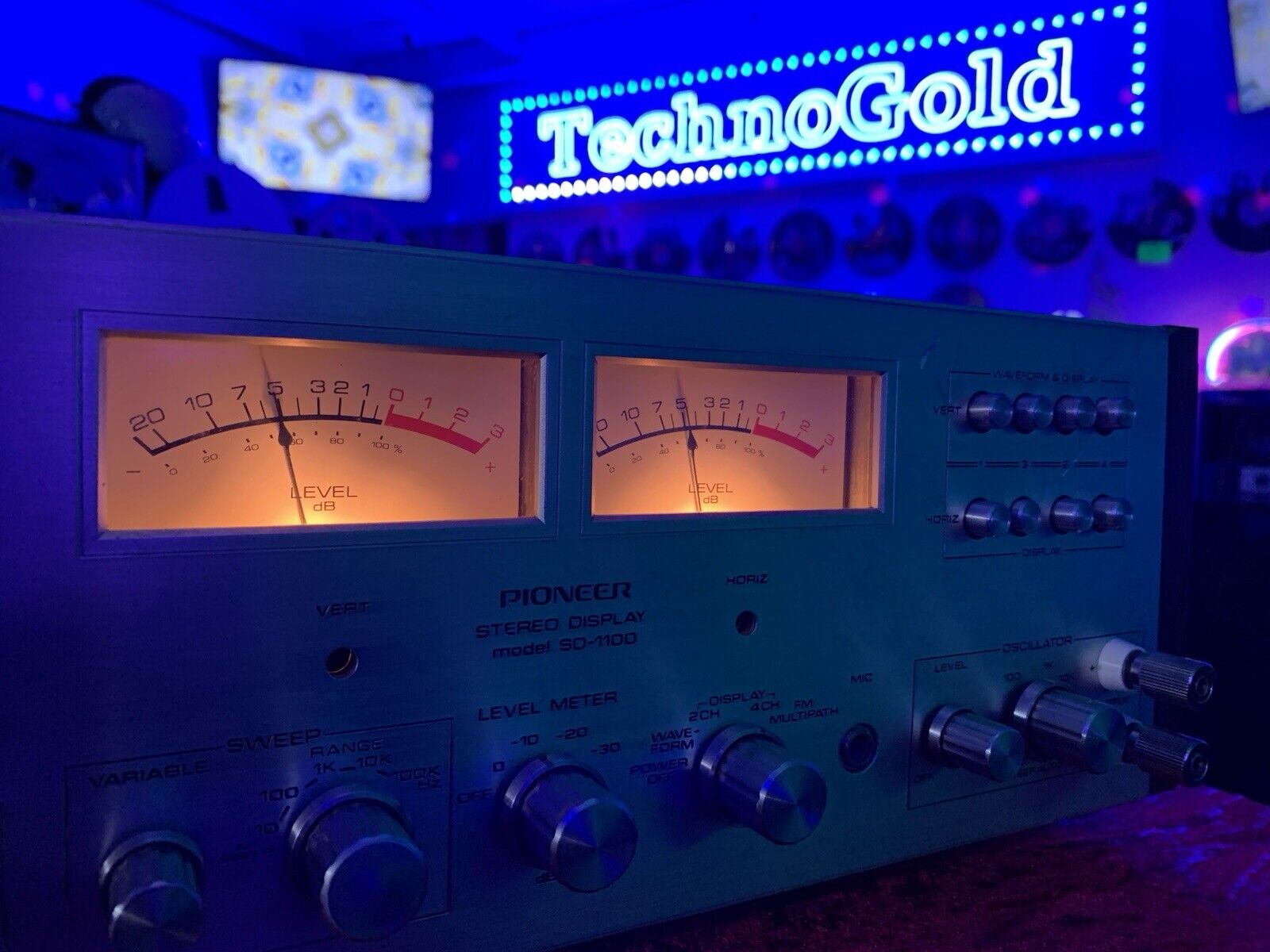

Original VU meter lighting
Very rare almost impossible to get, it is revised and completely original, working perfectly.
Pioneer SD-1100
Stereo Display Unit (1972-74)
Pioneer SD-1100

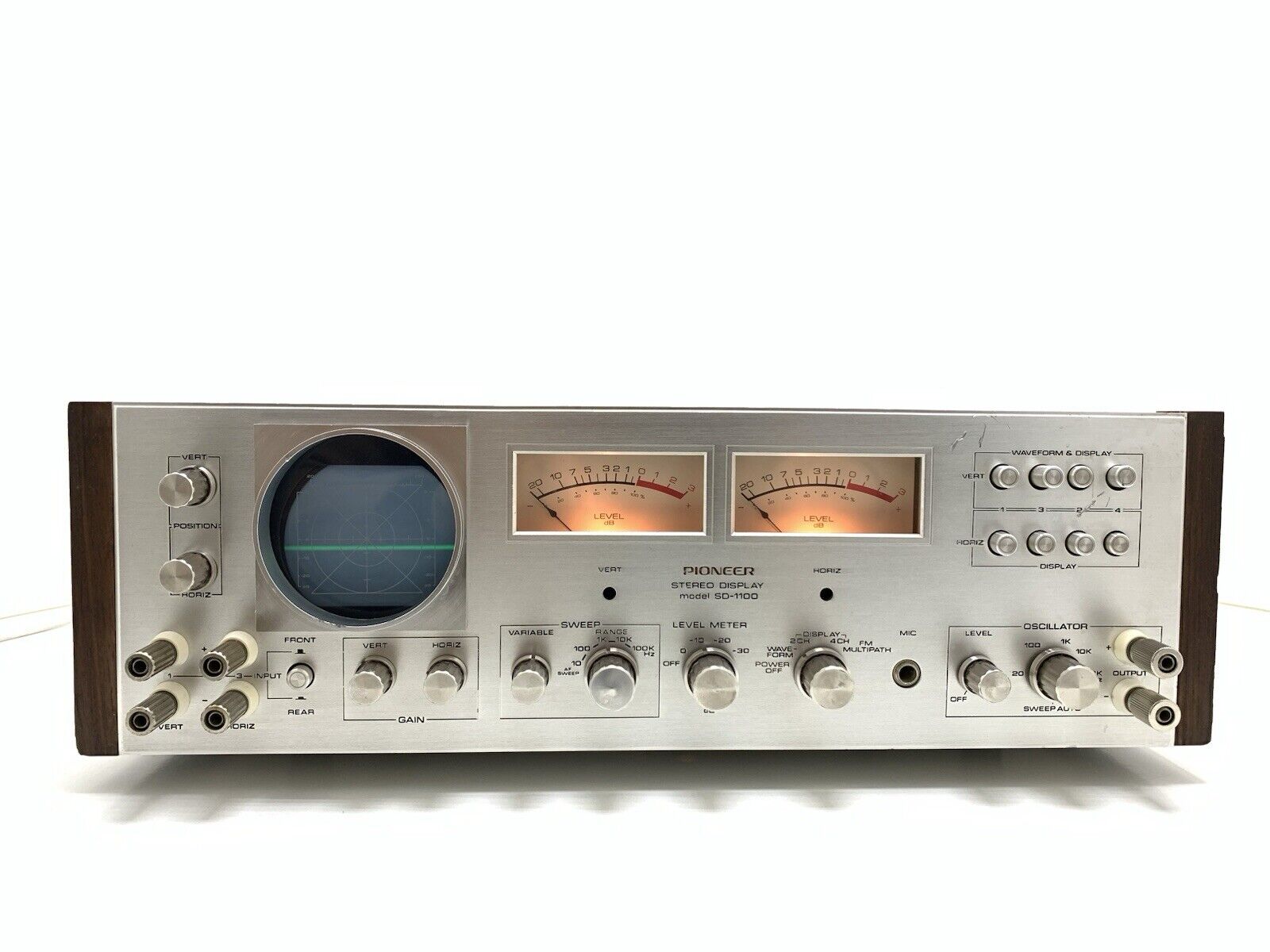

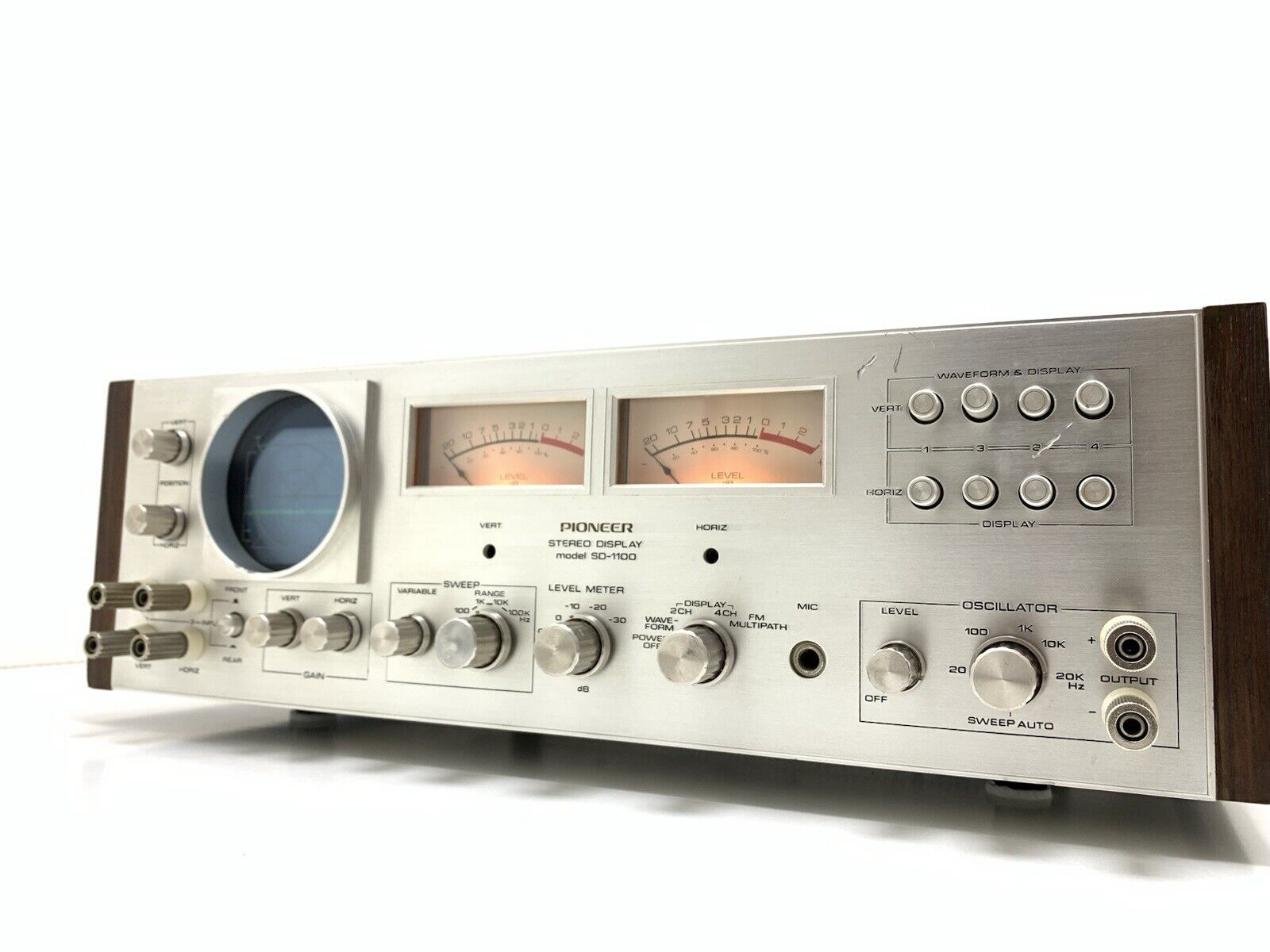

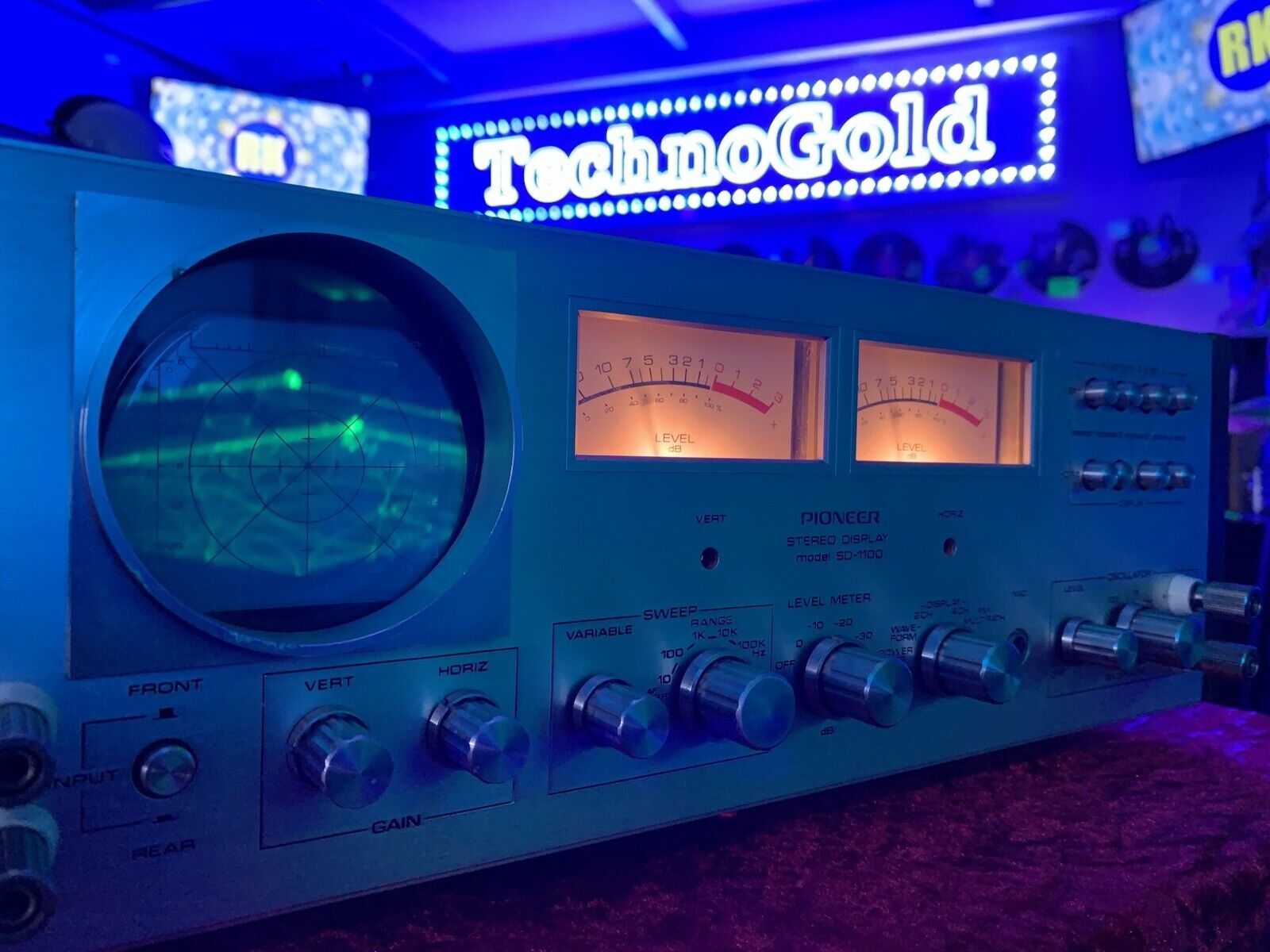

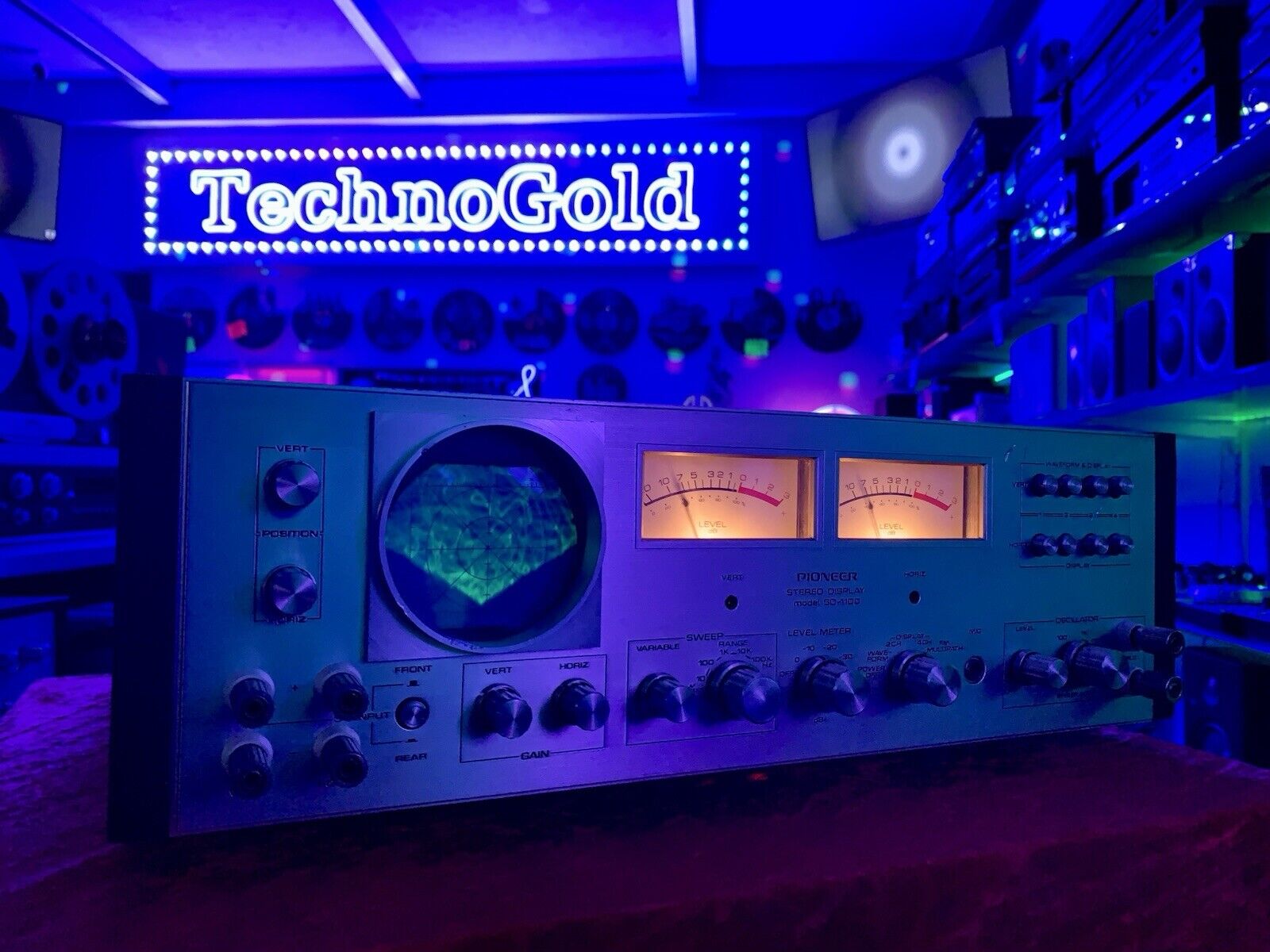

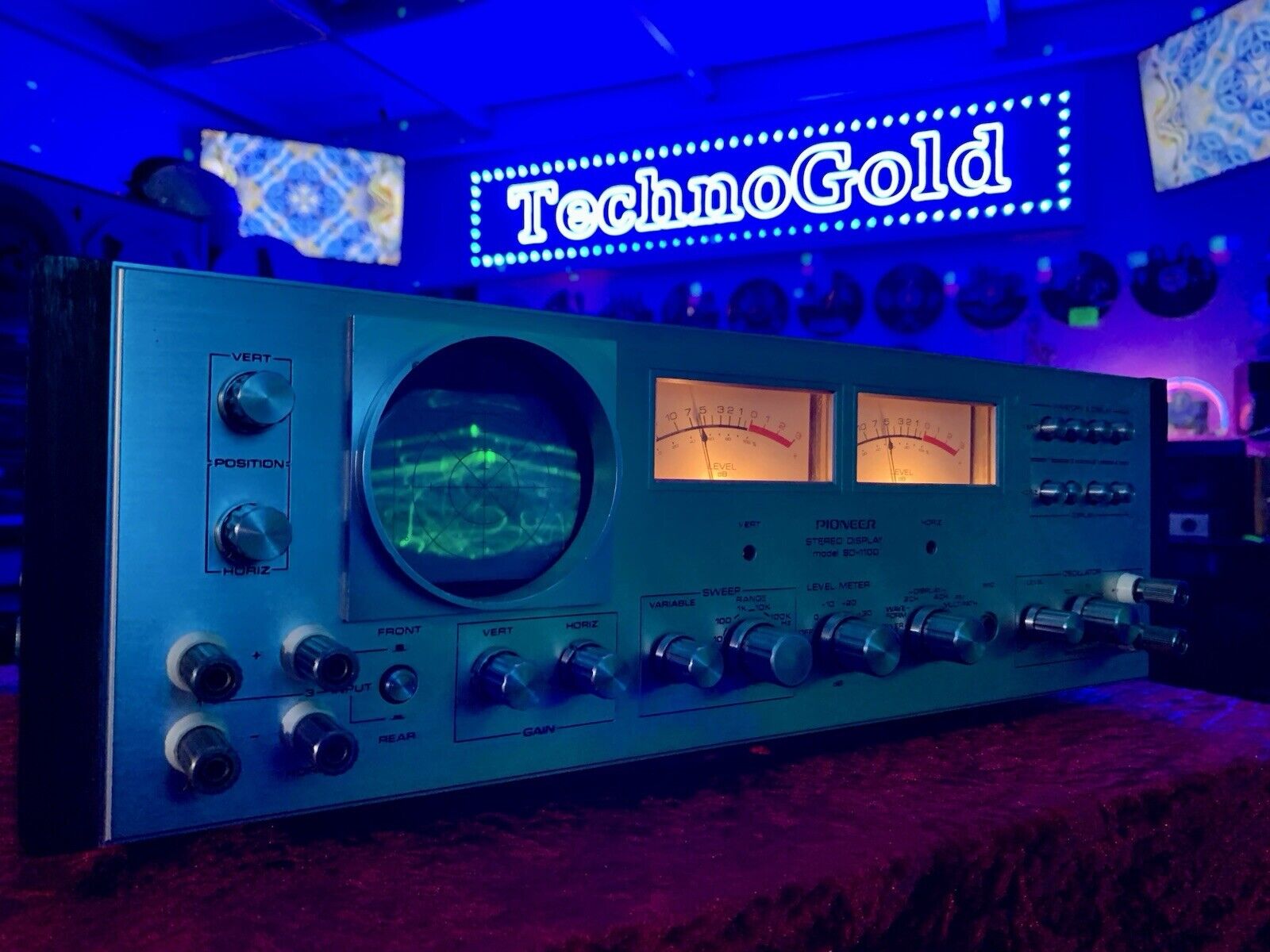

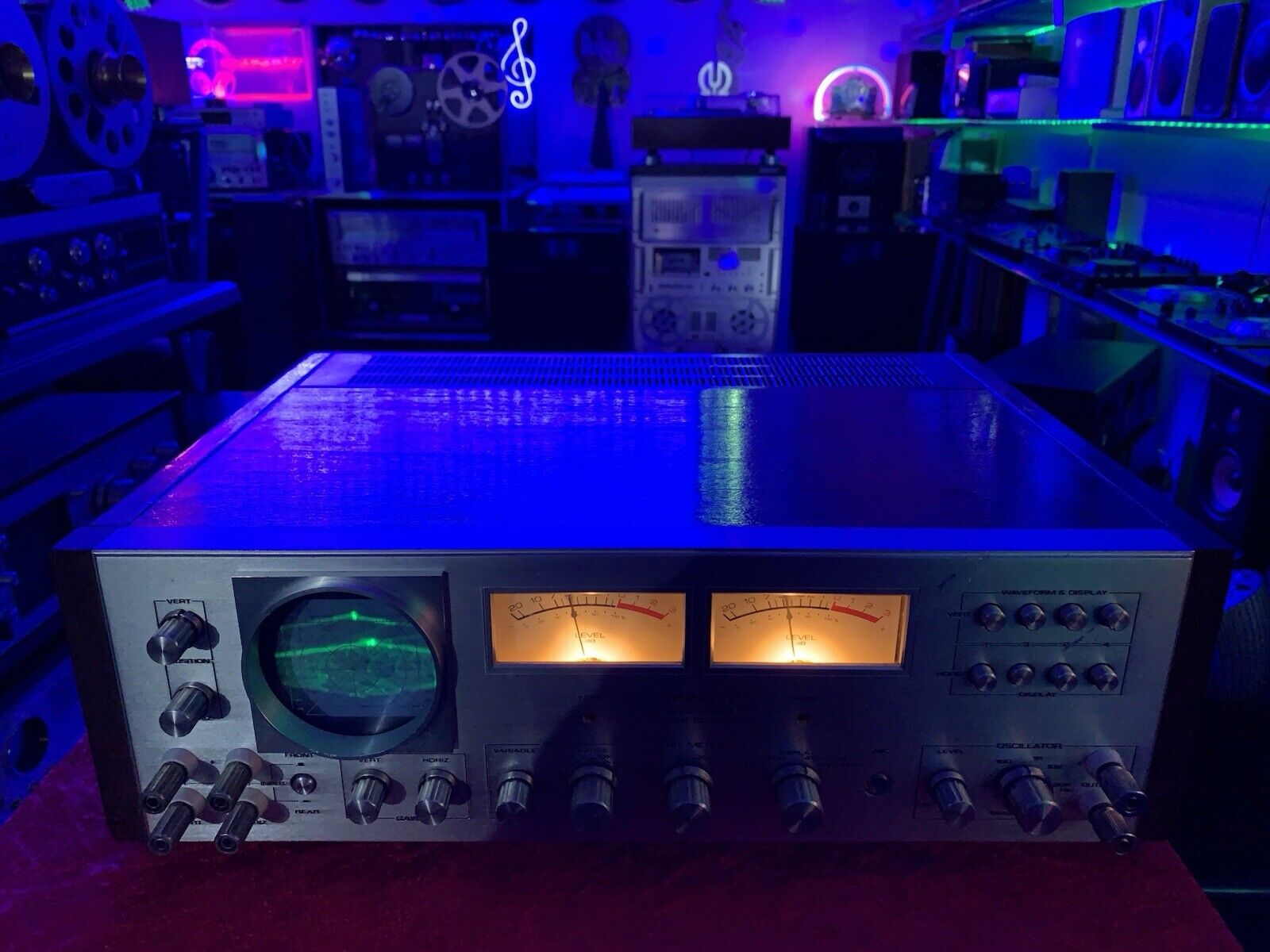

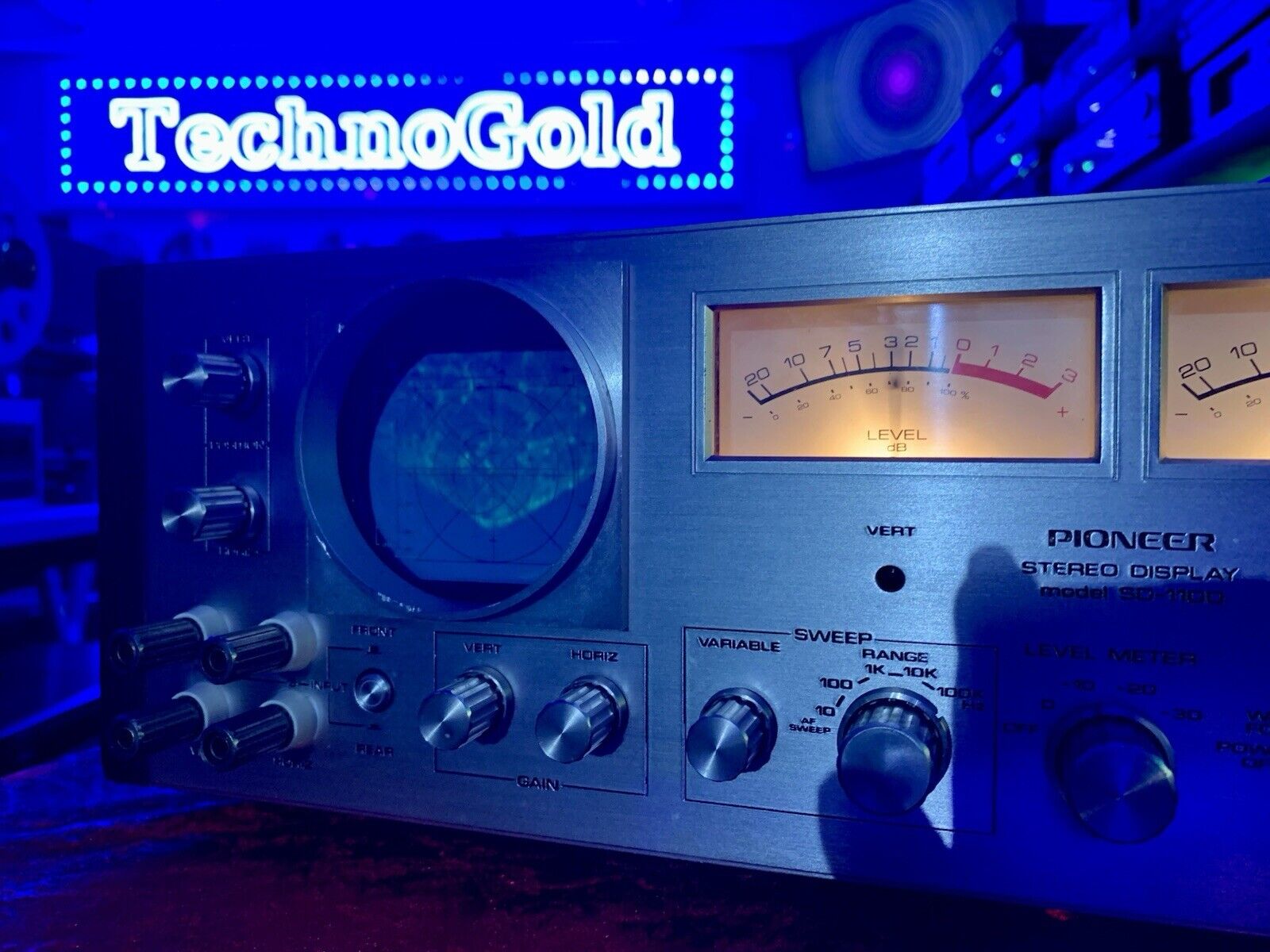

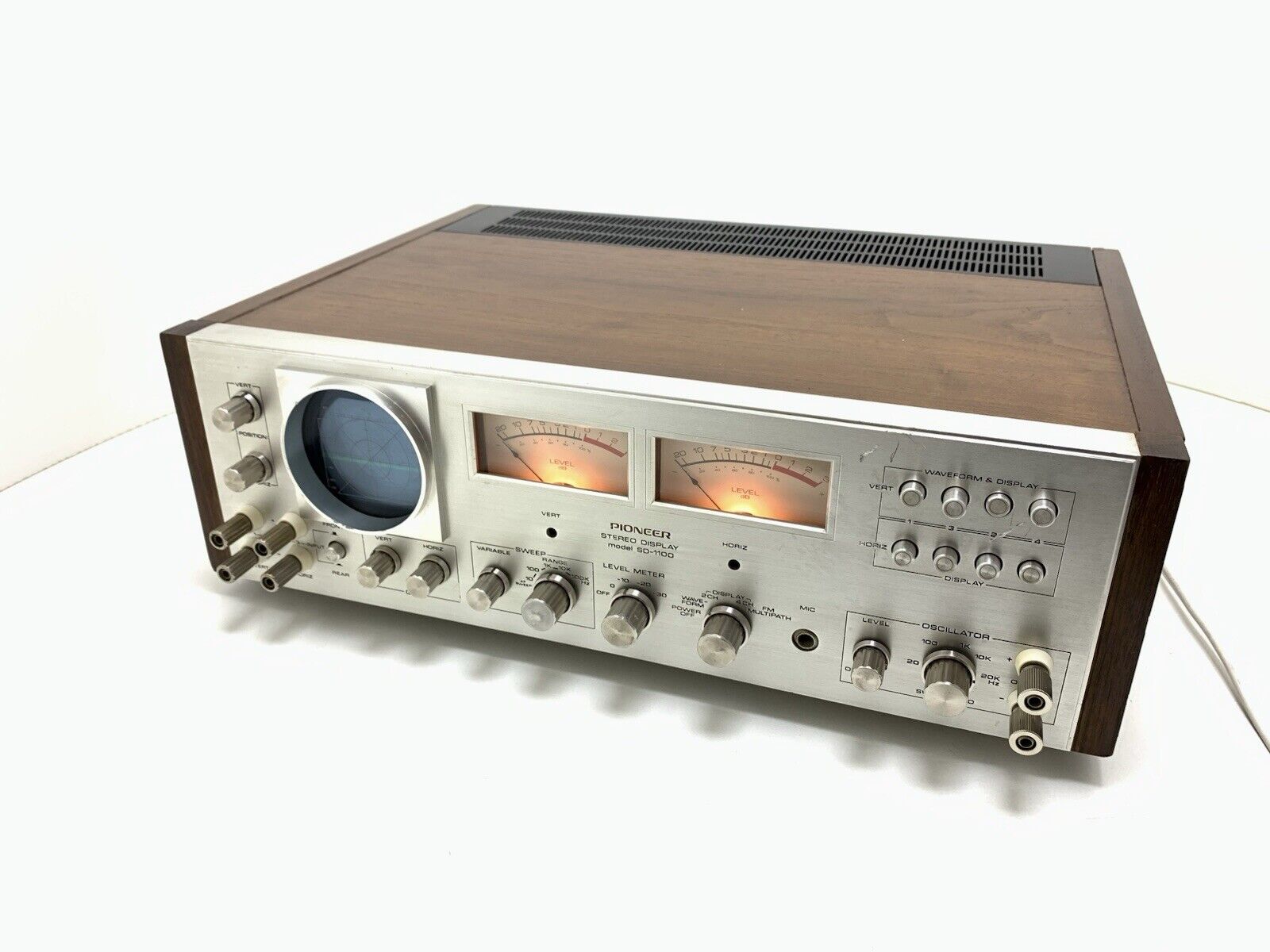

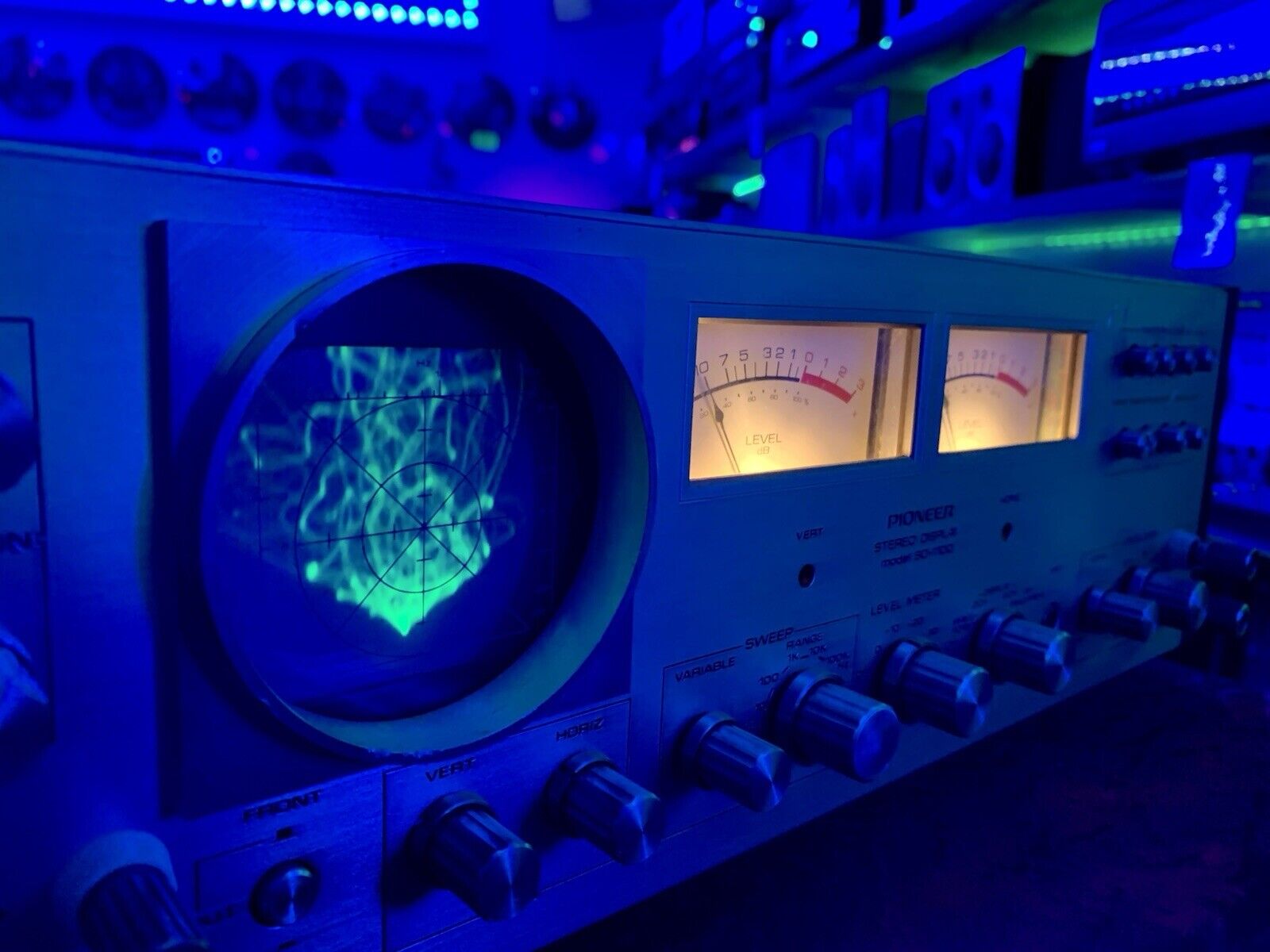

pioneer sd-1100 stereo display unit pioneer sd-1100 front panel
Description
The serious audio enthusiast who has long sought a precise method of scoping and testing his stereo components, with the objective of achieving ultimate sound performance at all times, will find Pioneer's new Stereo Display, Model SD-1100, to be the most complete instrument of its kind for this purpose.
Here, in one attractive, sensitive unit, is the capability for observation of the various stereo wave forms and a means of measuring the various characteristics possessed by all audio instruments, including amplifiers, tuners, speakers, cartridges, tape decks, etc. From every technical point of view, the Model SD-1100 is an advanced and truly versatile instrument.
You may, for example, use the Stereo Display to observe and analyze the wave forms of the new 4-channel stereo systems while at the same time measure the sound field characteristics of your own listening room.
You can observe a stereo display, measure a voltage level, measure a phase shift by means of a Lissajous pattern, measure stereo sound by observing a difference in level of output signals, even check the frequency response of a cartridge while playing a stereo test record. Much more, too.
Pioneer's Stereo Display installs easily and with its handsome design will complement your existing stereo equipment. Most important, an investment in this unit will be an investment in unparalleled sound quality.
Specifications
Cathode ray tube: 75mm electrostatic deflection type
Oscilloscope sweep frequency range: 5Hz to 250kHz
AF sweep frequency response: 20Hz to 20kHz
Dimensions: 430 x 138 x 349mm
Weight: 9kg
Semiconductors: 7 x FET, 68 x transistors, 50 x diodes

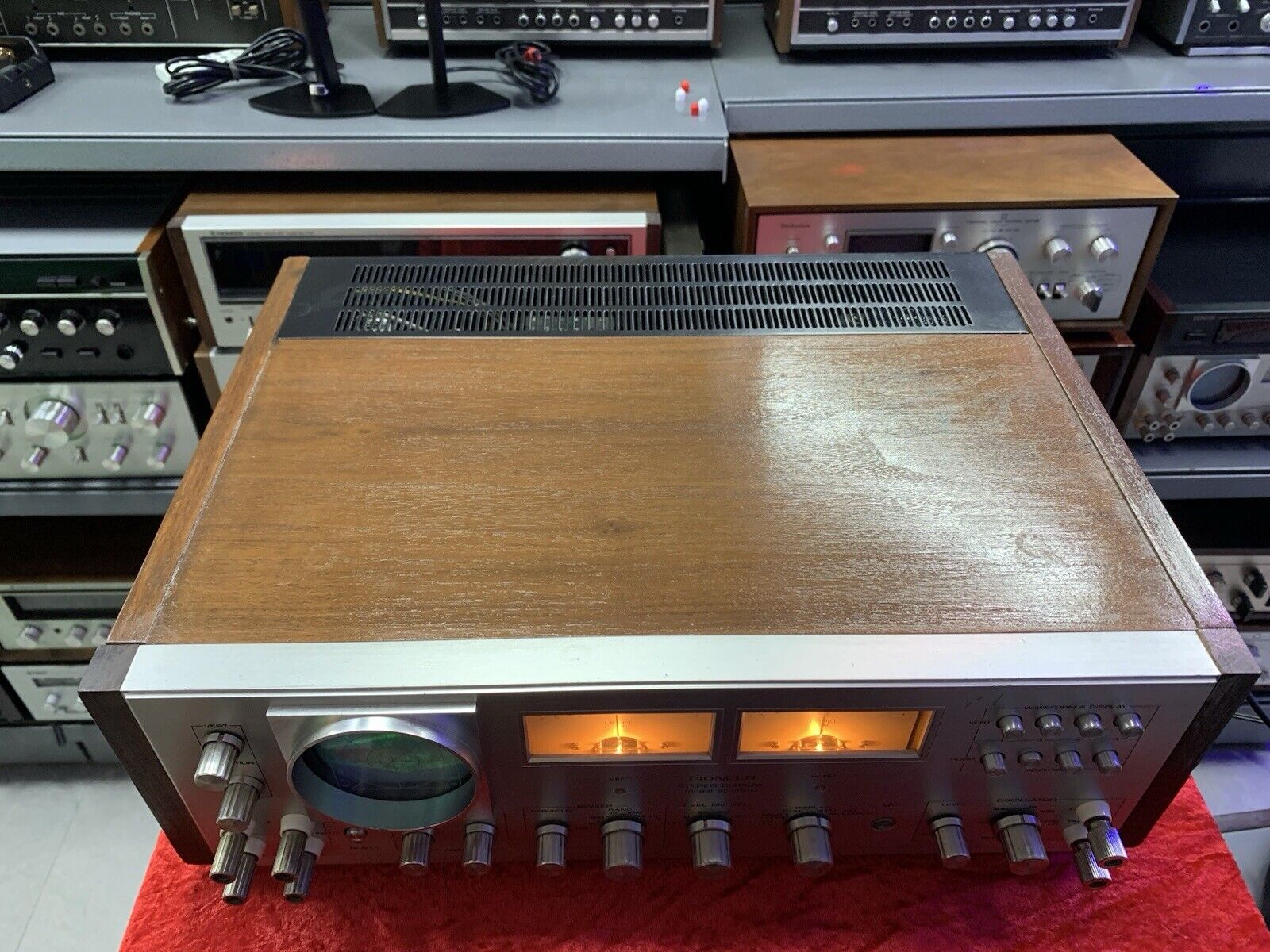

ATTENTION: It is a very rare and difficult to get item, very few units were manufactured in the world, it is more than 50 years old and some marks of the passage of time, please enlarge the photographs to see the external details, the item was completely restored and works perfectly!
